Fender (G1823028): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- NOTE: Only tighten the bolts finger tight at this stage.

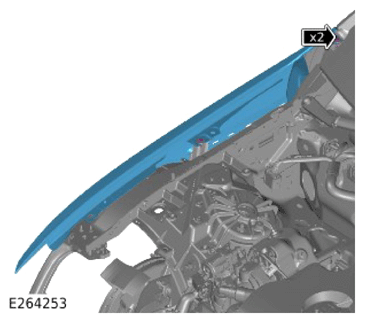

  Install the front right fender.

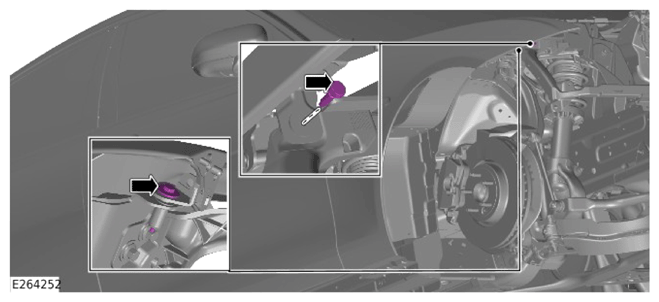

- Install the 2 bolts.
NOTE: Only tighten the bolts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

install the 2 bolts.
NOTE: Only tighten the bolts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

install the 2 bolts.
NOTE: Only tighten the bolts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

install the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

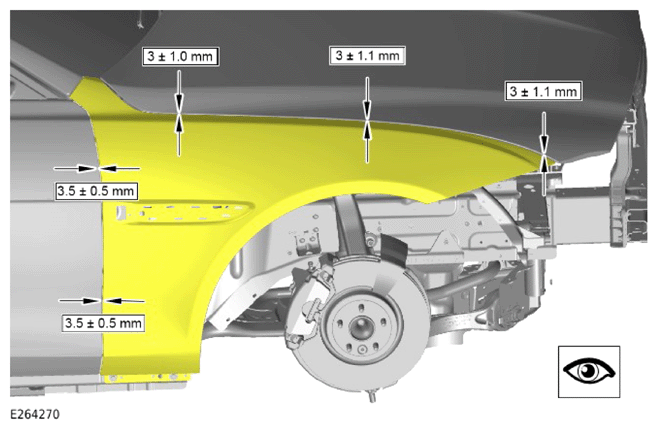

Align the fender gaps to the surrounding body panels as illustrated.
Tighten the 2 upper bolts.
Torque : 10 Nm
Tighten the 2 lower bolts.
Torque : 10 Nm
Tighten the 2 rear bolts.
Torque : 10 Nm
Tighten the 2 front bolts.
Torque : 10 Nm
- Install the front wheel arch liner.
- Install the clip.
- Install and tighten the 2 nuts.
Torque : 10 Nm
Install the windshield moulding.
Install the wheel and tire.
Refer to: WHEEL AND TIRE
Install the rocker panel moulding.
Refer to: ROCKER PANEL MOULDING
Install the front fender moulding.
Refer to: FRONT FENDER MOULDING
Install the headlamp assembly.
Refer to: HEADLAMP ASSEMBLY
