Tailgate - SPORTBRAKE (G2136526): Removal

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Open the tailgate.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

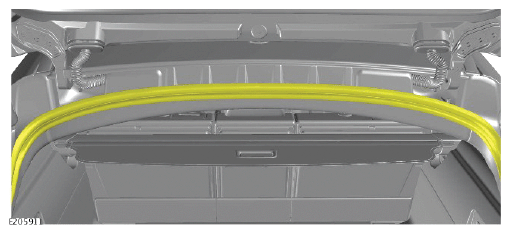

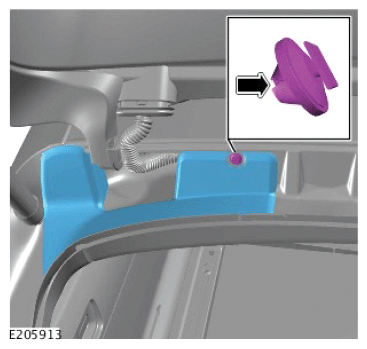

Release the tailgate aperture seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the access cover.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

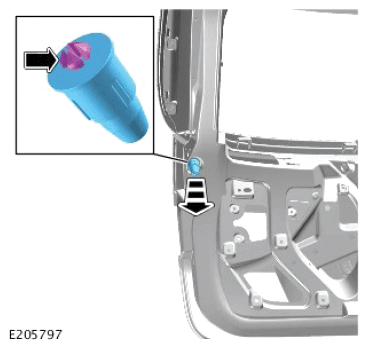

Release the grommet.

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

Refer to: HEADLINER - SPORTBRAKE

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

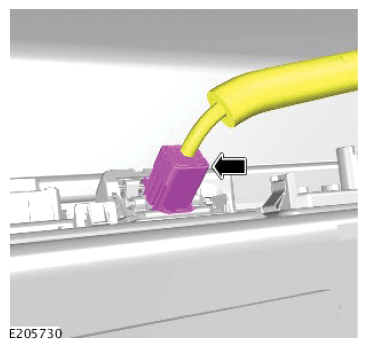

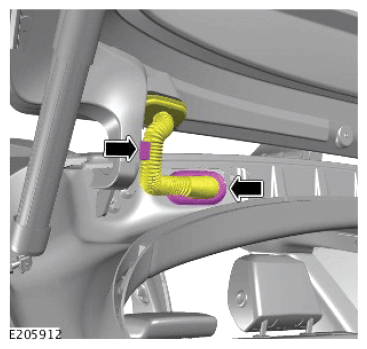

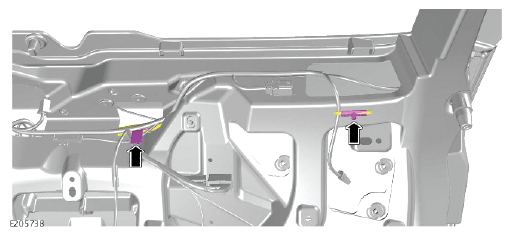

• Disconnect the wiring harnesses electrical connectors.

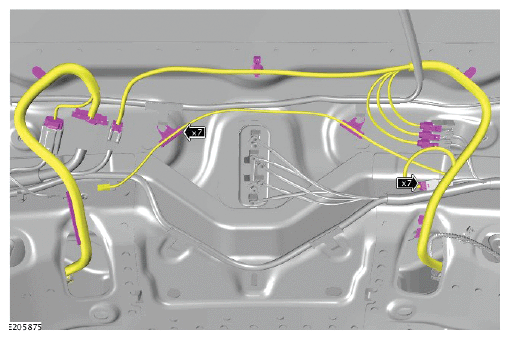

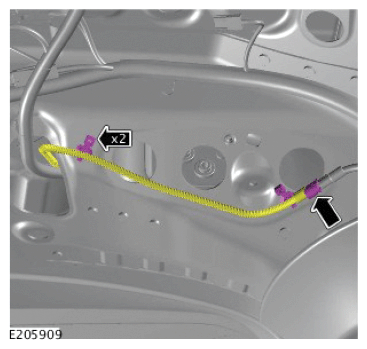

• Release the wiring harnesses.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

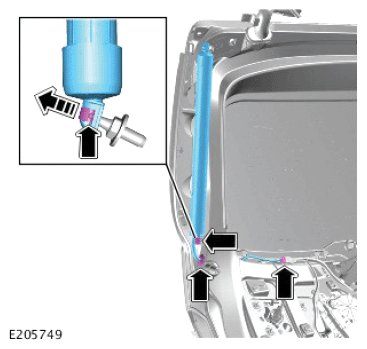

Disconnect the washer jet hose.

Refer to: REAR SPOILER - SPORTBRAKE

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

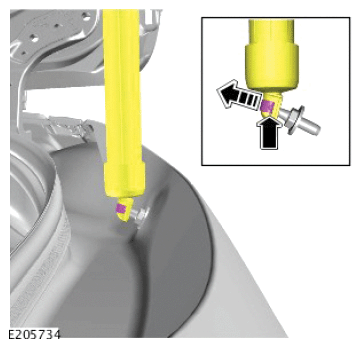

Disconnect the tailgate actuator from the body.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

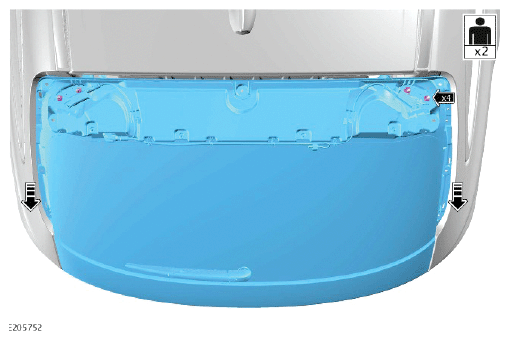

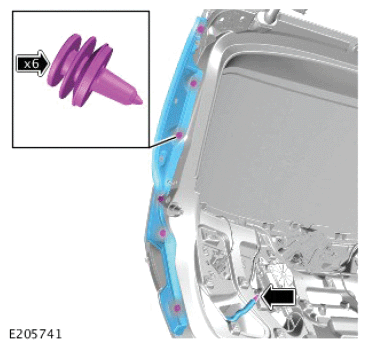

• Remove the 4 retaining nuts.

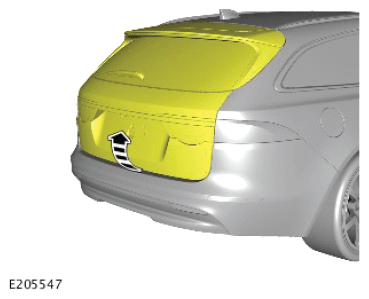

• With assistance, remove the tailgate assembly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• NOTE:

  • Only complete the following step(s) if the new component is to be installed.
  • Do not remove the component at this stage.

  Remove the 2 retaining clips.

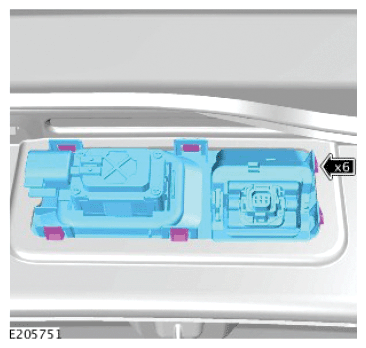

• Reposition the activity key transceiver module.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

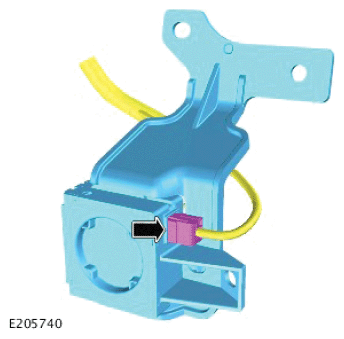

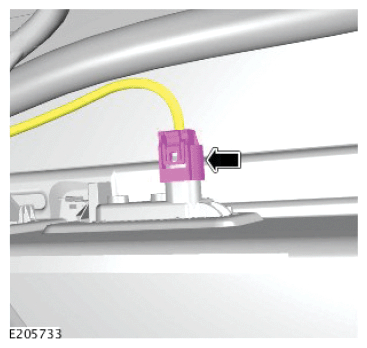

• Disconnect the electrical connector.
• Remove the activity key transceiver module.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Disconnect the electrical connector.
• Release the electrical harness.

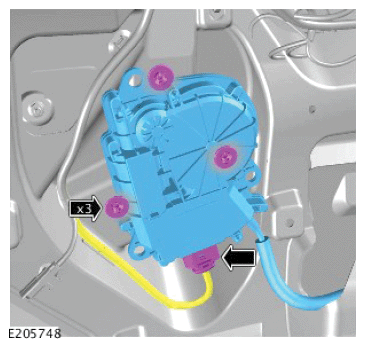

• Remove the tailgate actuator from the tailgate.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Disconnect electrical connector.
• Remove and discard the retaining clips.
• Remove the tailgate anti-trap sensor.

Refer to: REAR WINDOW - SPORTBRAKE

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the latch cover trim.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• NOTE: Do not remove the component at this stage.

  Release the wiring harness clip.

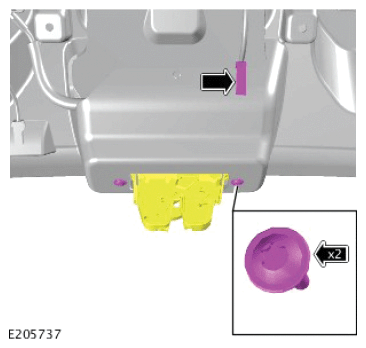

• Release the latch.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

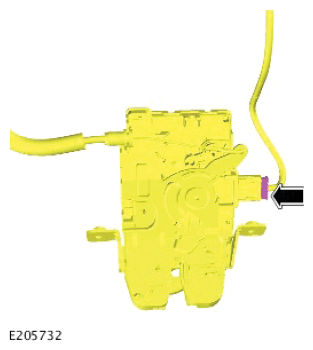

Disconnect electrical connector from the latch.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

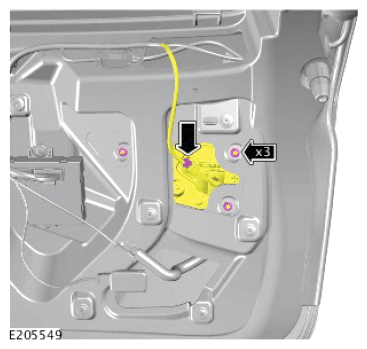

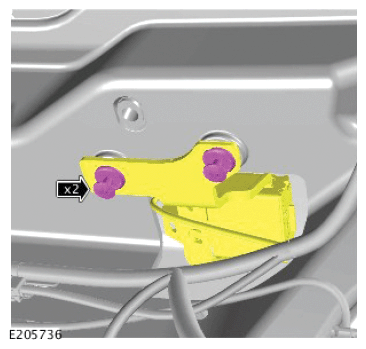

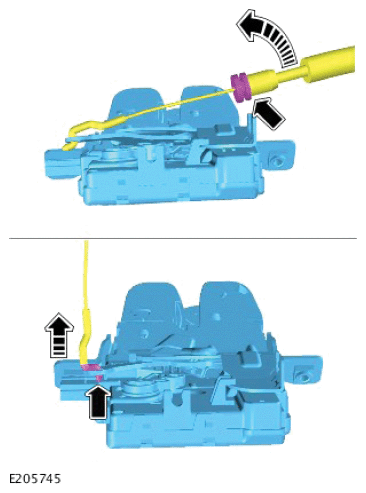

• Release the latch cable.
• Remove the latch.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Disconnect the electrical connector.
• Remove the tailgate closing motor.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

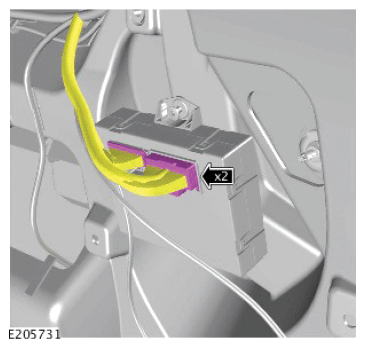

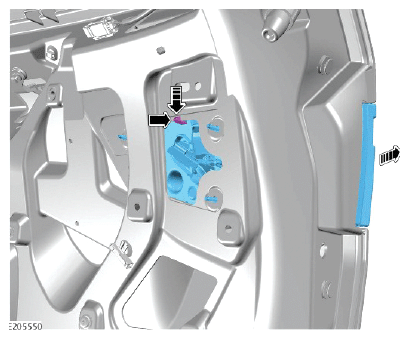

Disconnect the 2 electrical connectors from the tailgate control module (TGCM).

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

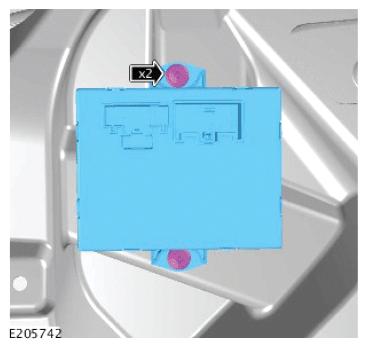

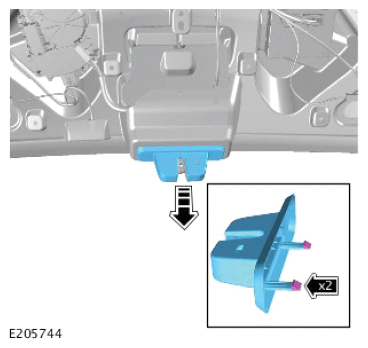

• Remove 2 retaining clips.
• Remove the tailgate control module (TGCM).

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

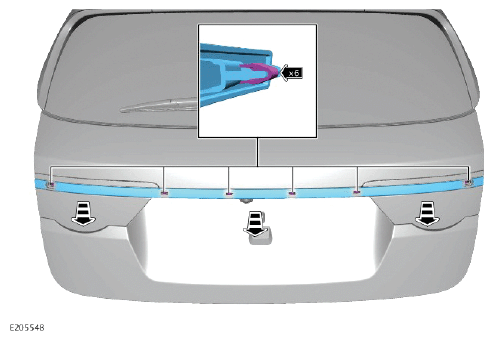

Remove and discard tailgate trim finisher.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Disconnect the electrical connector.
• Remove the 3 retaining nuts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Carefully release the clip.
• Remove the rear fog lamp.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

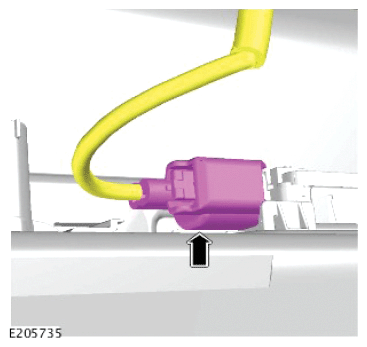

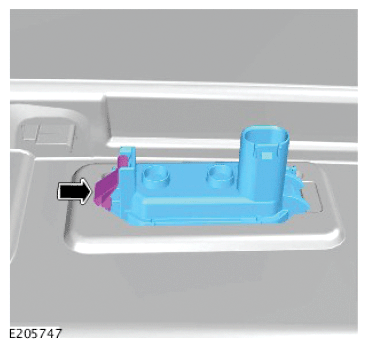

Disconnect electrical connector from the license plate lamp.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the license plate lamp.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector from the tailgate open switch.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector from the parking aid camera.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the tailgate open switch.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the left wire harness from the tailgate.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

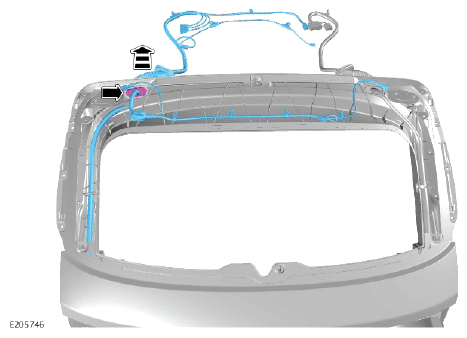

• Release the grommet.
• Remove the left wiring harness.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bump stop.
