Fuel Tank Wiring Harness Modification (G1475832): Repair

NOTE:
  • Some components shown removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.
    • For additional information on correct wiring harness repair techniques, refer to the appropriate Wiring Harness information
  2. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
  3. Refer to: LOW PRESSURE FUEL PUMP ASSEMBLY (G2767407)

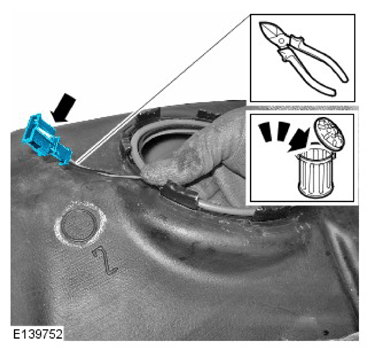

  4. NOTE: Cut the wires as close as possible to the electrical connector.
    G11331048Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

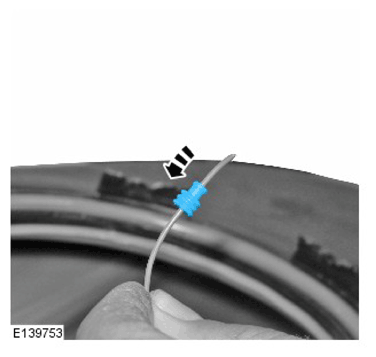

  5. G11331049Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

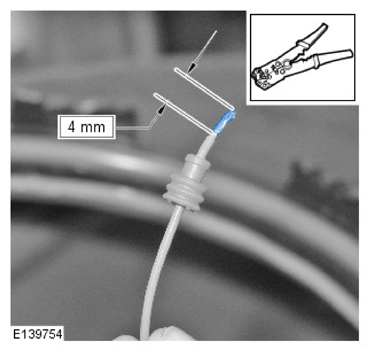

  6. G11331050Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

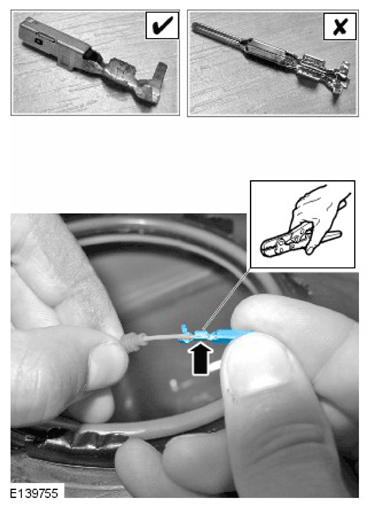

  7. G11331051Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the female terminal to the wire, and using a suitable tool crimp the first stage.

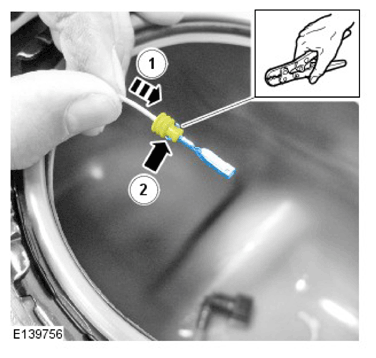

  8. G11331052Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the wiring harness grommet to the terminal, and using a suitable tool, crimp the second stage.
    • Repeat steps  5 to  8 for the second wire.

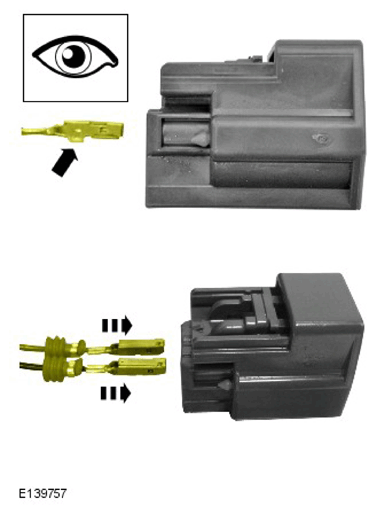

  10. CAUTION: It is essential that the wires are installed in the correct orientation as shown. The lug must be positioned opposite to the connector release clip.
    G11331053Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  11. CAUTION: Make sure that the wires are installed correctly by pulling the wires gently to make sure they are engaged.
    G11331054Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Secure the electrical terminals with the anti-backout.

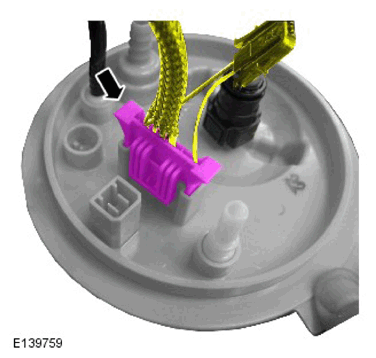

  12. G11331055Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

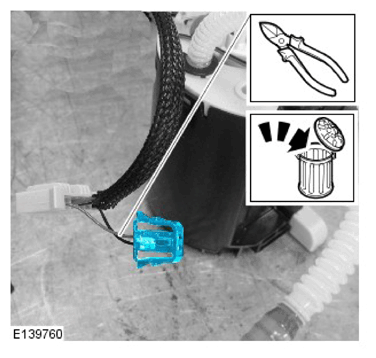

  13. NOTE: Cut the wires as close as possible to the electrical connector.
    G11331056Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

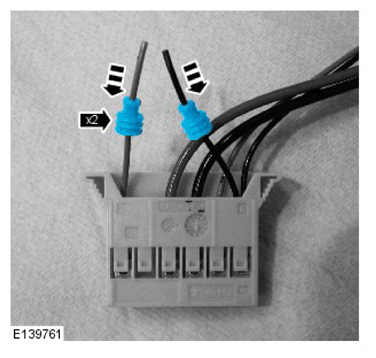

  14. G11331057Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

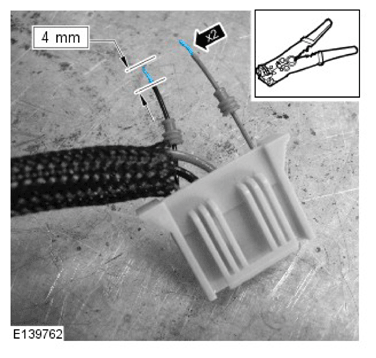

  15. G11331058Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

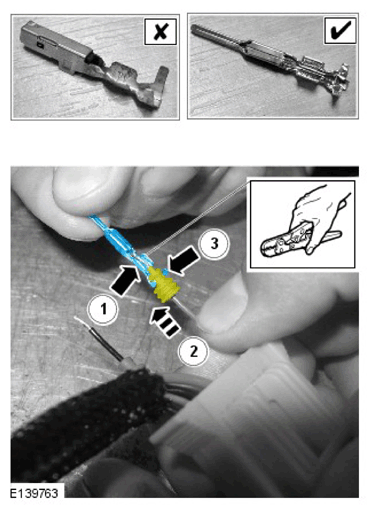

  16. G11331059Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Following the procedure above for the female terminals, install the two male terminals to the wires.

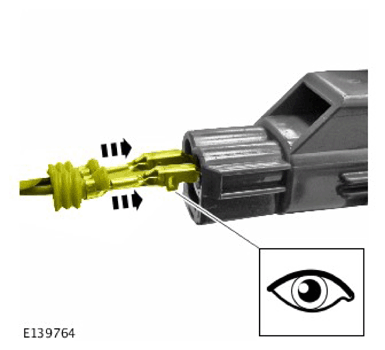

  17. CAUTION:
    • Make sure that the wires are installed to align with the corresponding coloured wire on the opposite connector.
    • It is essential that the wires are installed in the correct orientation as shown.
    G11331060Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

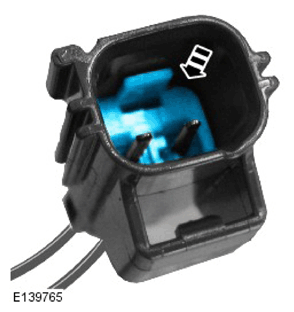

  18. CAUTION: Make sure that the wires are installed correctly by pulling the wires gently to make sure they are engaged.
    G11331061Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Secure the electrical terminals with the anti-backout.

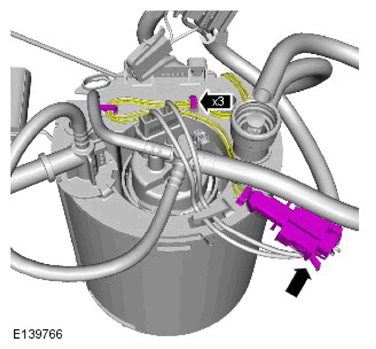

  19. G11331062Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  20. CAUTION:
    • The male connector is to be installed on the sender side.
    • Make sure that the wires are installed to align with the corresponding coloured wire on the opposite connector.
    • It is essential that the wires are installed in the correct orientation to the connectors.
    • Using the procedure outlined above for the passive side sender, remove the wiring connectors from the active side sender and replace with the new connectors from the parts kit.

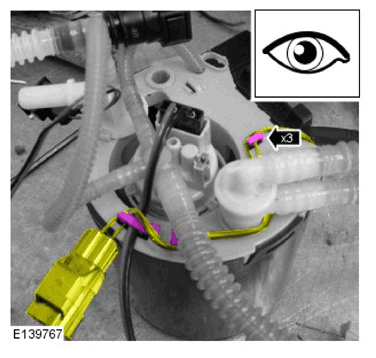

  21. G11331063Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Re-route the active side sender wires as shown.

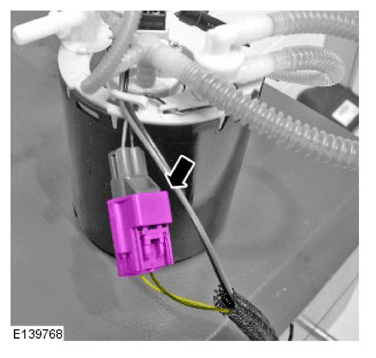

  22. G11331064Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

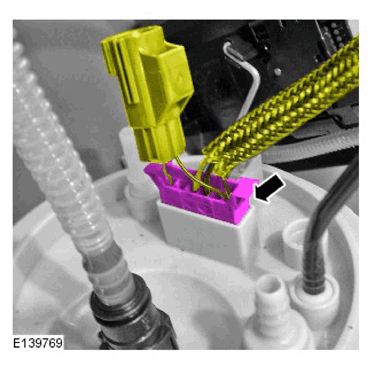

  23. G11331065Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  24. Refer to: LOW PRESSURE FUEL PUMP ASSEMBLY (G2767407)
  25. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
