Sunglasses Holder (G2686358): Installation

NOTE:
- Use Krytox GPL205 (from the squeak and rattle kit/sourced locally) or equivalent.
- This step is only required if the cam latch is damaged or missing .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

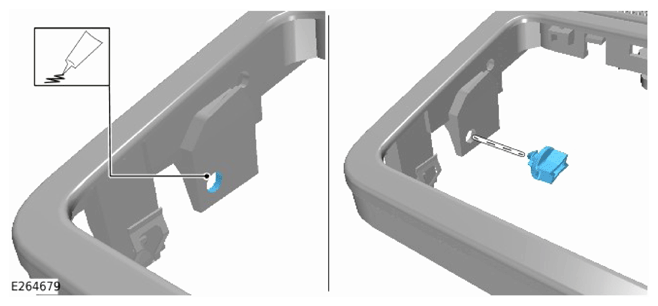

- Apply grease to the area illustrated.
- Install the cam latch.
NOTE:
- Use Krytox GPL205 (from the squeak and rattle kit/sourced locally) or equivalent.
- This step is only required if the cam latch is being reused .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

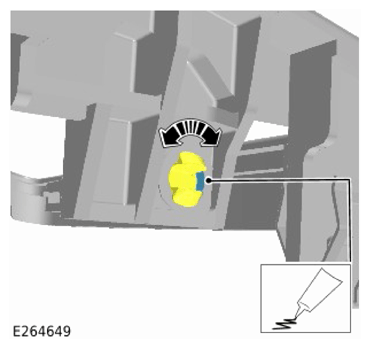

Apply a small amount of grease to the position illustrated. Rotate the cam latch to distribute the grease and wipe off any excess.
NOTE: Use Krytox GPL205 (from the squeak and rattle kit/sourced locally) or equivalent.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

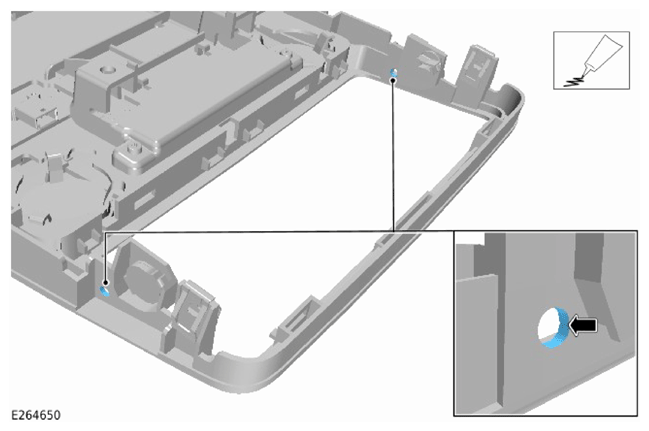

Apply grease the areas illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

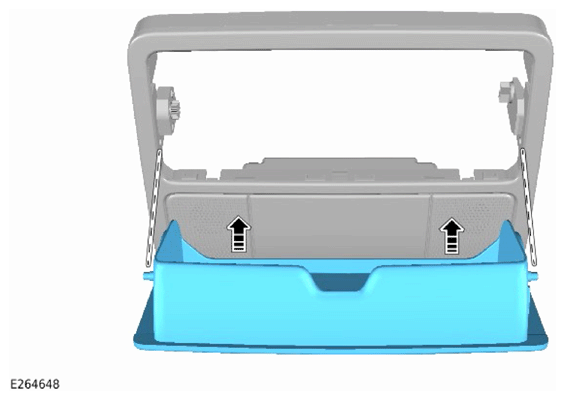

Install the sunglasses holder.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

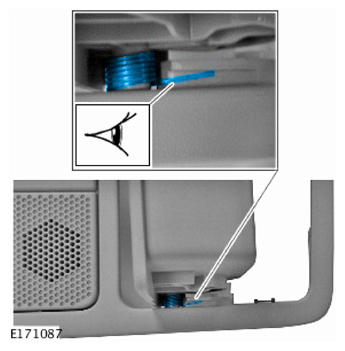

Make sure the spring is positioned correctly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

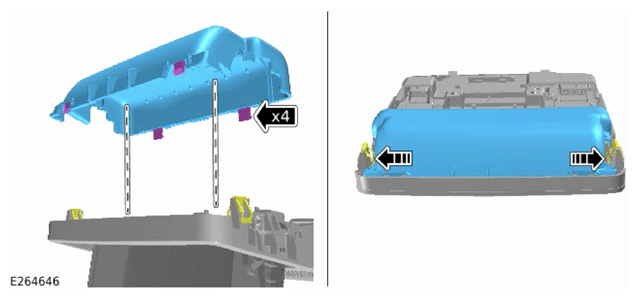

Install the sunglasses holder cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

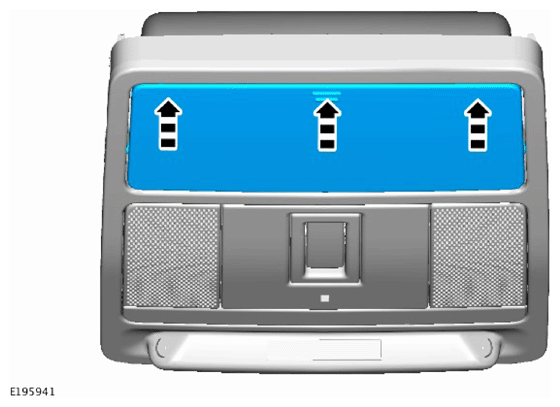

Operate the sunglasses holder a minimum of 3 times in the 3 positions illustrated to check the functionality.
Install the front overhead console.
Refer to: OVERHEAD CONSOLE
