Instrument Panel Lower Trim Panel (G2502359): Removal

CAUTION: Take extra care not to damage the surrounding trim panels.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains illustrations for left hand drive vehicles, right hand drive vehicles are similar.
  1. Disconnect the 12 V system.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Remove the floor console side trim panel.

    Refer to: FLOOR CONSOLE SIDE TRIM PANEL

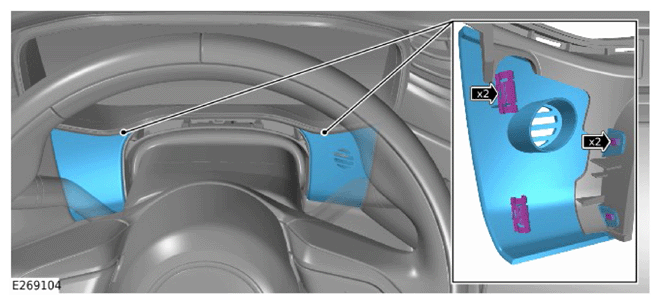

  3. G15628385Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 8 clips
    • Remove the 2 trim panels below the instrument cluster.

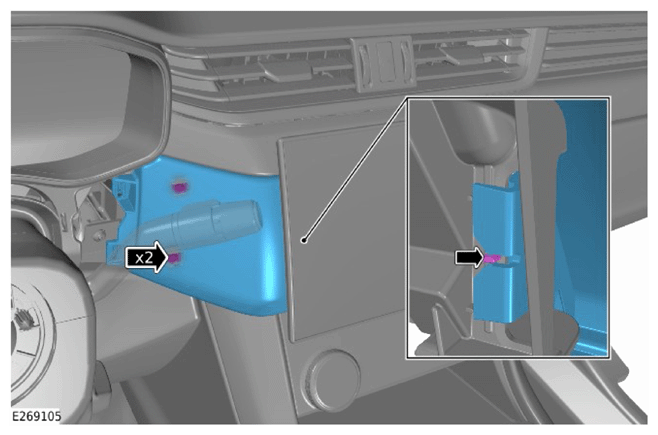

  4. G15628386Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 3 clips.
    • Remove the trim panel from the touchscreen bracket.

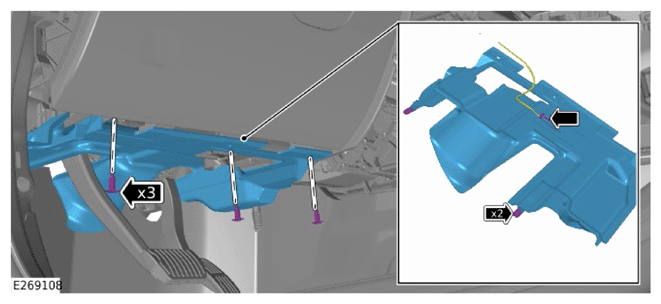

  5. G15628387Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 fasteners.
    • Release the 2 Noise, Vibration and Harshness (NVH) material dowels.
    • Disconnect the electrical connector from the footwell lamp.
    • Remove the instrument panel lower NVH  material.

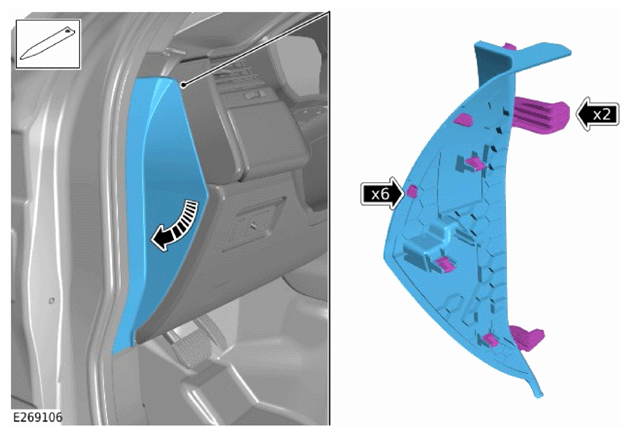

  6. G15628388Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Use a suitable tool to release the 6 clips.
    • Release the 2 clips and remove the instrument panel driver side trim.

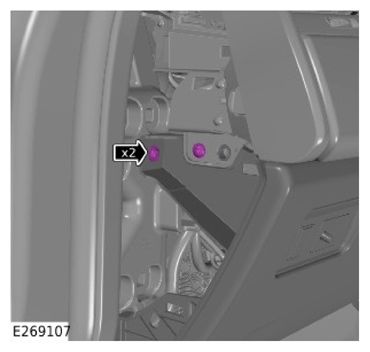

  7. G15628389Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 screws.

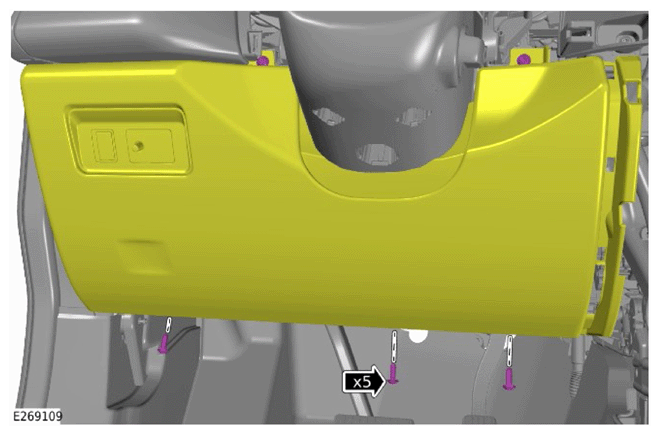

  8. G15628390Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 5 screws from the instrument panel lower trim panel.

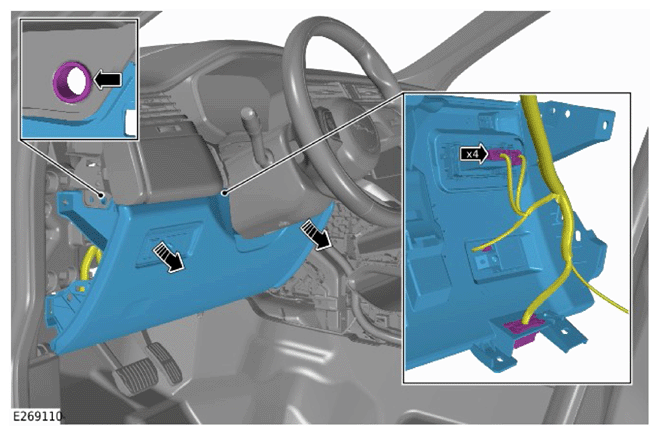

  9. G15628391Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the instrument panel lower trim panel to get access to the electrical connectors.
    • Disconnect the 3 electrical connectors.
    • Release the On-Board Diagnostics connector.
    • Remove the instrument panel lower trim panel.
  10. NOTE: Do not disassemble further if the component is removed for access only.

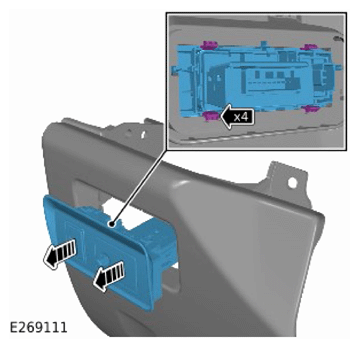

    G15628392Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 4 clips.
    • Remove the lighting control switch.

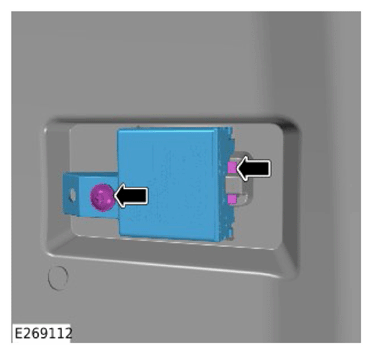

  11. G15628393Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the screw.
    • Remove the Immobilizer Antenna Unit (IAU) from the bracket.
