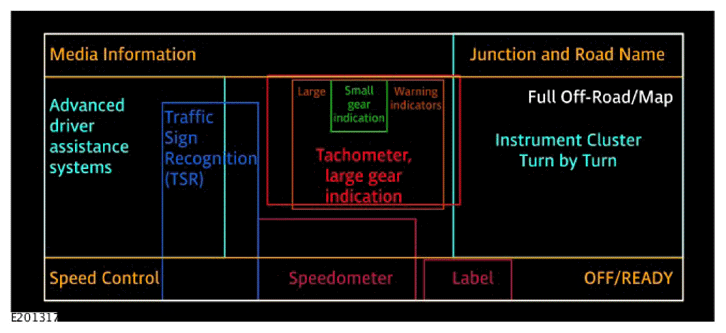

Head Up Display - Zone Layout
NOTE:
Not all the information below is displayed at the same time, zone displays is shown based on prioritizing and/or boundary overlap.
The following zones can be displayed in the HUD :
- Speedometer zone - Vehicle speed value
- Label zone - Speed units
- Large warnings zone - Forward alert, driver intervene
- Advanced driver assistance systems zone:
- Lane Departure Warning (LDW)/Lane Keep Assist (LKA) tracking
- LDW/LKA alert
- LDW/LKA idle/OFF
- Adaptive speed control gap setting and follow mode
- Steering control
- Side swipe (blind spot monitoring system function)
- Traffic jam assist/integrated cruise assist.
- Set speed info zone - Speed control, speed limiter
- Junction and road name zone - Navigation next road name
- Turn by turn zone - Navigation display, navigation video display
- Traffic Sign Recognition+ (TSR+) and Traffic Sign Recognition (TSR) zone - Warning signs, vehicle speed units/value, overtake, speed text, sign type
- Small gear display zone - Gear state
- Tachometer and large gear display zone - Large gear position, gear upshift indicator
- Full off road/map zone - Full screen 4x4i.
When selected the HUD feature projects the following driver information display onto the inside of the windshield:

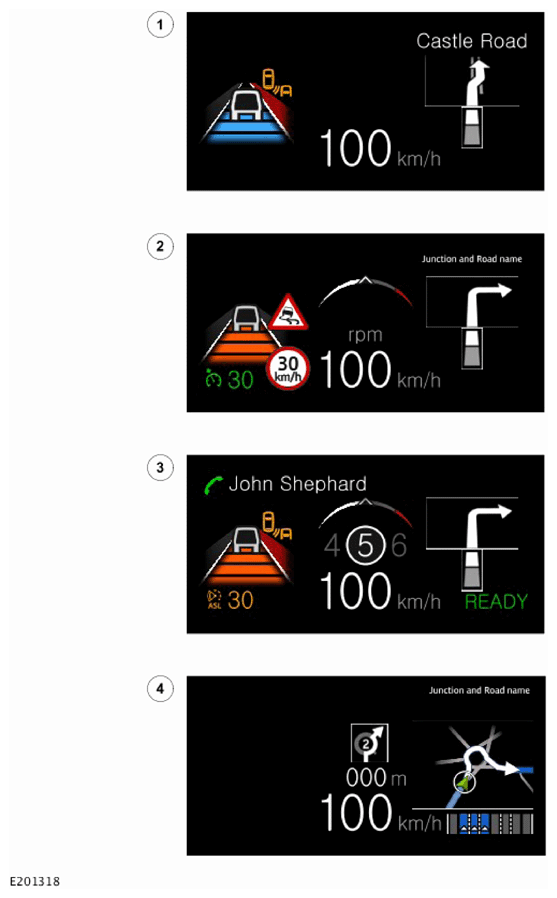

Head Up Display - Display Theme
| ITEM | DESCRIPTION |
|---|---|
| 1 | LDW, vehicle speed, navigation next road name |
| 2 | Speed limiter, TSR/vehicle speed, navigation |
| 3 | Speed limiter, vehicle speed, gear position, mobile phone call, LDW |
| 4 | Junction and road name zone |
