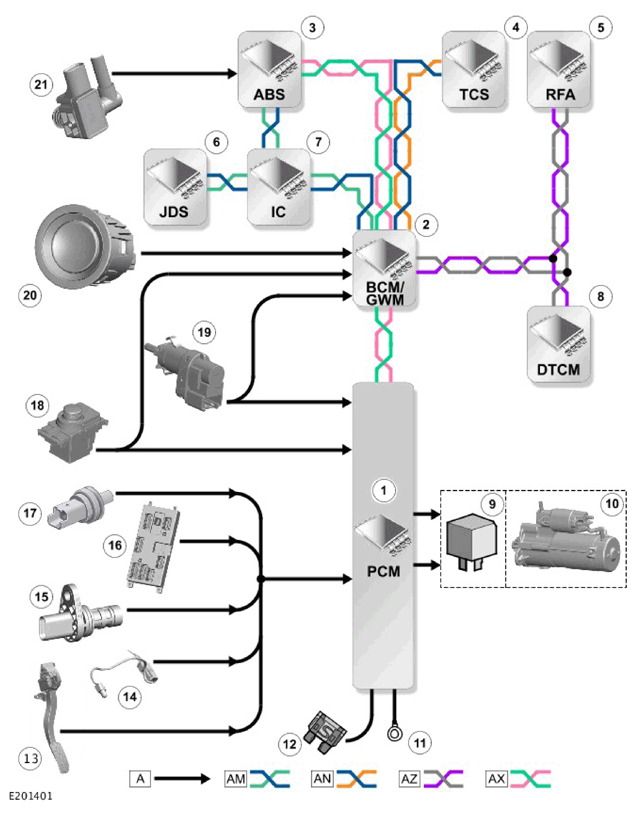

Control Diagram 2 Of 2 - Vehicles With Auto Stop/Start System
A = HARDWIRED: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS: AZ = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS: AX = FLEXRAY .
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 3 | Anti-lock Brake System (ABS) control module |
| 4 | Transmission Control Switch (TCS) |
| 5 | Remote Function Actuator (RFA) |
| 6 | Jaguar Drive Switchpack (JDS) |
| 7 | Instrument Cluster (IC) |
| 8 | Deployable Towbar Control Module (DTCM) |
| 9 | Starter relay - Engine Junction Box 2 (EJB 2) |
| 10 | Starter motor |
| 11 | Ground |
| 12 | Power supply |
| 13 | Accelerator Pedal Position (APP) sensor |
| 14 | Ambient Air Temperature (AAT) sensor |
| 15 | Crankshaft Position (CKP) sensor |
| 16 | Crank signal - Body Control Module/Gateway Module (BCM/GWM) assembly |
| 17 | Engine Coolant Temperature (ECT) sensor |
| 18 | Park/neutral signal - Transmission Control Switch (TCS) |
| 19 | Brake pedal switch |
| 20 | Ignition switch |
| 21 | Brake vacuum sensor |
