Torque Specifications
COMPONENT TORQUE LOCATION
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATION
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 1 |

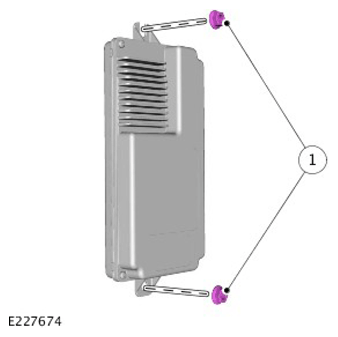

Camera Control Module (CCM) nuts |
9 |
- |
80 |
| 2 |

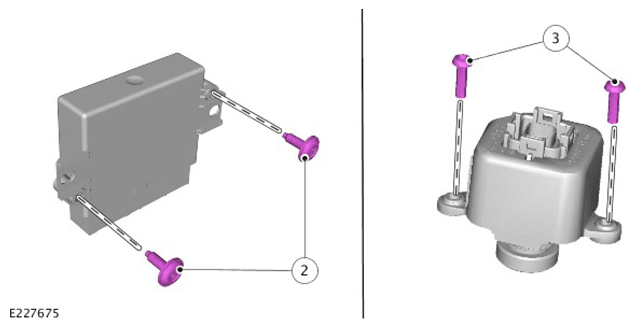

Parking Aid Control Module (PACM) screws |
2.2 |
- |
19 |
| 3 |
Mirror proximity camera screws |
0.5 |
- |
4 |
