Parking Aid Control Module (PACM) (G1858919): Removal

1. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

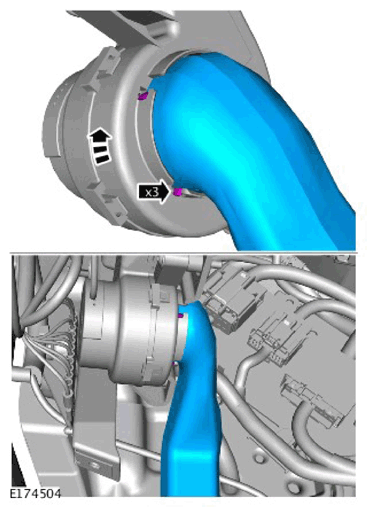

2. Refer to: INSTRUMENT PANEL LOWER TRIM PANEL

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

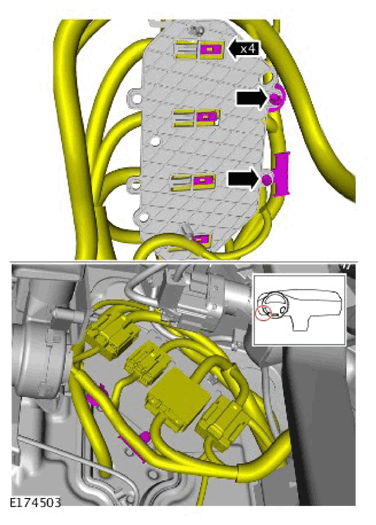

4. CAUTION: Take extra care not to damage the wiring harnesses.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

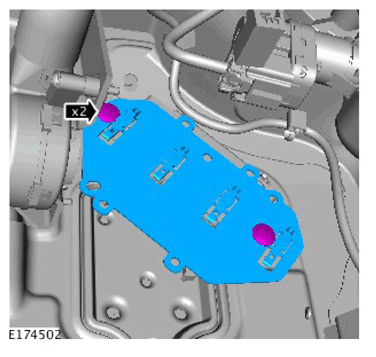

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

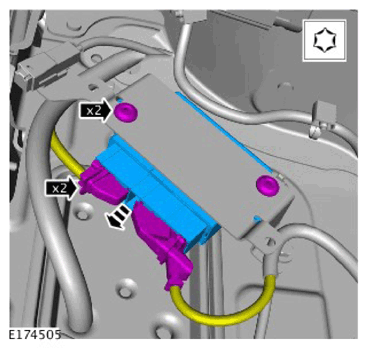

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque  : 2.2 Nm
