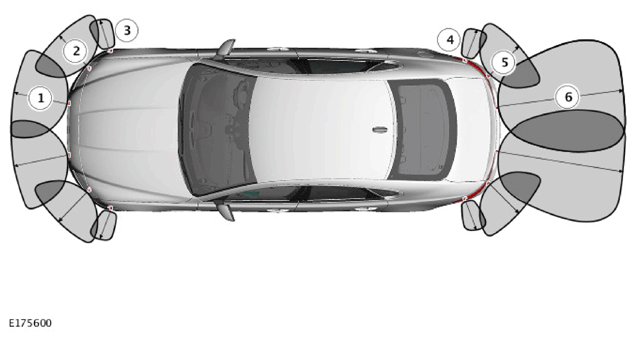

Distance Calculation For Audible Warnings
| ITEM NUMBER | SENSOR LOCATION | MAXIMUM DETECTION RANGE AUDIO TONE | CONTINUOUS AUDIO TONE |
|---|---|---|---|
| 1 | Front Inner | Approximately 1200 mm (47 inches) | Approximately 300 mm (12 inches) |
| 2 | Front Outer | Approximately 1200 mm (47 inches) | Approximately 300 mm (12 inches) |
| 3 | Side Sensor - front | Approximately 1200 mm (47 inches) | Approximately 300 mm (12 inches) |
| 4 | Side Sensor - rear | Approximately 1200 mm (47 inches) | Approximately 300 mm (12 inches) |
| 5 | Rear Outer | Approximately 1200 mm (47 inches) | Approximately 300 mm (12 inches) |
| 6 | Rear Inner | Approximately 1800 mm (71 inches) | Approximately 300 mm (12 inches) |
