Perpendicular Parking

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

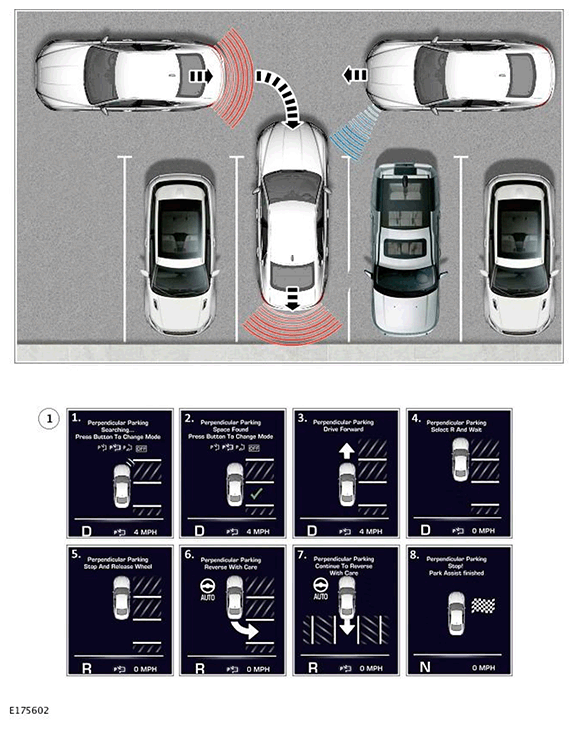

When perpendicular parking is selected, the system automatically searches for a space that is big enough to maneuver into using the park assist sensors.

When a parking space has been identified the Parking Aid Control Module (PACM) processes the information provided by the sensors for creating a parking trajectory. The PACM then sends a High Speed (HS) Controller Area Network (CAN) chassis bus message via the Body Control Module/Gateway Module (BCM/GWM) assembly to the Instrument Cluster (IC). A message will then be displayed in the IC message center and a audio warning from the speakers will inform the driver of this.

The IC message center will then instruct the driver to drive past the space slowly until the instructions on the IC message center tells you to stop. Once the PACM has established that vehicle has stopped, The PACM will then send information to the IC message center, for the driver to let go off the steering wheel.

The PACM will then inform the IC to instruct the driver to select Reverse (R) gear. Once the driver has followed these instructions, information is then sent to the Transmission Control Module (TCM) and Power Steering Control Module (PSCM) and back to the PACM for perpendicular parking sequence to begin.

During the perpendicular parking sequence, the PACM, PSCM and IC will continue to communicate with each other. The parking aid sensors will also inform the PACM of any detections. The PACM will send out information that it receives, and send back to the IC message center instructions for the driver to follow.
