Proximity Camera Switch

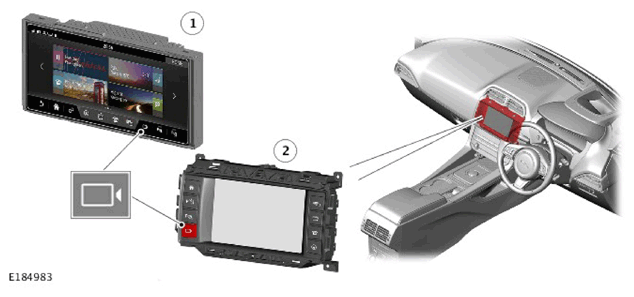

| ITEM | DESCRIPTION |
|---|---|
| 1 | Touch screen InControl™ Touch Pro systems |
| 2 | Touch screen InControl™ Touch systems |
The proximity camera switch is located in the left Touch Screen (TS) switchpack.
The proximity camera switch is a non-latching push switch.
Once pressed the proximity camera switch will turn the system on and aerial views will be the first available option. Further presses of the switch will scroll the remaining options.
The sequence is as followed:
- Aerial view.
- T-Junction view.
- Rear view.
The Light Emitting Diode (LED) indicates when the park assist system is active. The LED is controlled by the PACM.
If the TS is a 10.2" single or dual view screen the proximity camera switch is a soft key located at the bottom right of the screen.
