Parking Aid Switch

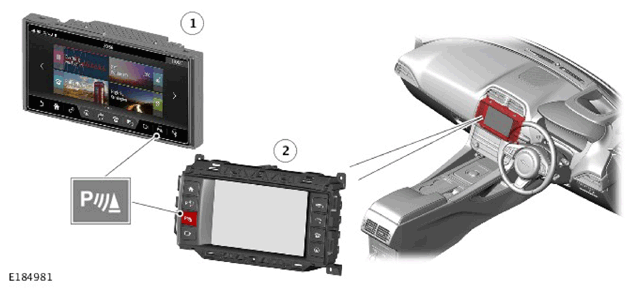

| ITEM | DESCRIPTION |
|---|---|
| 1 | Touch screen InControl™ Touch Pro systems |
| 2 | Touch screen InControl™ Touch systems |
The parking aid switch is located in the left Touch Screen (TS) switchpack.
The parking aid switch is a non-latching push switch, which allows the driver to select the parking aid on or off.
When pressed, the switch momentarily connects to ground to the Parking Aid Control Module (PACM).
The Light Emitting Diode (LED) indicates when the parking aid system is active. The LED is controlled by the PACM.
If the TS is a 10.2" single or dual view screen the parking aid switch is a soft key located at the bottom right of the screen.
