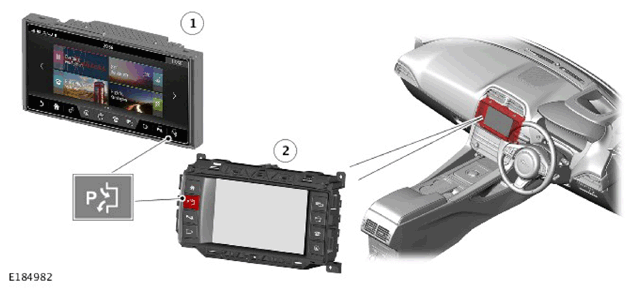

Park Assist Switch
| ITEM | DESCRIPTION |
|---|---|
| 1 | Touch screen InControl™ Touch Pro systems |
| 2 | Touch screen InControl™ Touch systems |
The park assist switch is located in the left Touch Screen (TS) switchpack.
The park assist switch is a non-latching push switch.
Once pressed the park assist switch will turn the system on and parallel parking will be the first available option. Further presses of the switch will scroll the remaining options. The sequence is as follows:
- Parallel parking.
- Perpendicular parking.
- Parking exit.
- Park assist off.
The switch connects a ground to the Parking Aid Control Module (PACM).
The Light Emitting Diode (LED) indicates when the park assist system is active. The LED is controlled by the PACM.
If the TS is a 10.2" single or dual view screen the park assist switch is a soft key located at the bottom right of the screen.
The 10.2" TS shows the different options as icons on the screen.

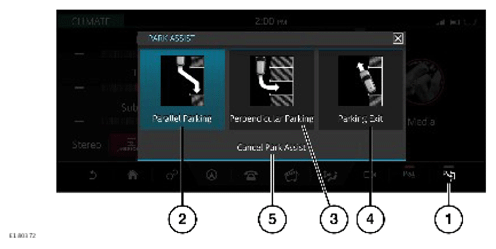

10.2" Touch Screen Park Assist icons
| ITEM | DESCRIPTION |
|---|---|
| 1 | Park Assist soft key |
| 2 | Parallel parking |
| 3 | Perpendicular parking |
| 4 | Parking exit |
| 5 | Park assist off |
