360° Parking Aid System
NOTE:
For Vehicles fitted with InControl™ Touch Infotainment Systems.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Parking aid sensor - front (4 off) and Park assist sensor - front (2 off) |
| 2 | Camera Control Module (CCM) |
| 3 | Parking aid sensor - rear (4 off) and Park assist sensor - rear (2 off) |
| 4 | Parking Aid Control Module (PACM) |
| 5 | Audio Head Unit (AHU) |
| 6 | Touch Screen (TS) |

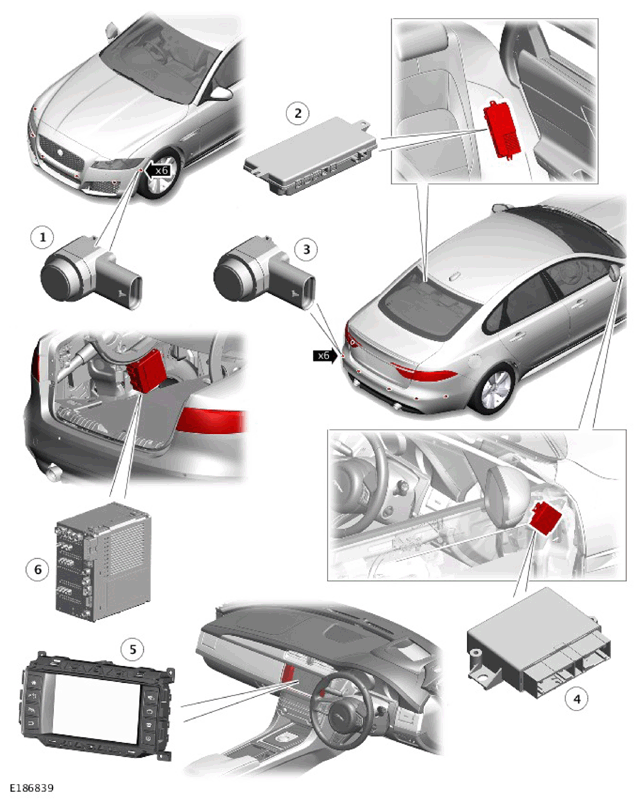

NOTE:
For Vehicles fitted with InControl™ Touch Pro Infotainment Systems.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Parking aid sensor - front (4 off) and Park assist sensor - front (2 off) |
| 2 | Camera Control Module (CCM) |
| 3 | Parking aid sensor - rear (4 off) and Park assist sensor - rear (2 off) |
| 4 | Parking Aid Control Module (PACM) |
| 5 | Touch Screen (TS) |
| 6 | Infotainment Master Controller (IMC) |
