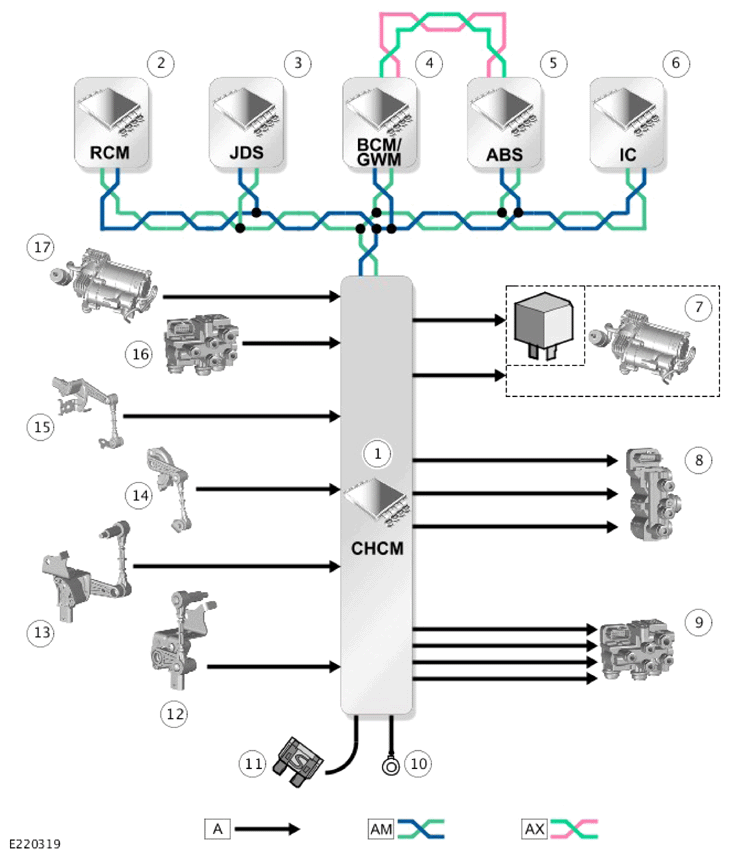

Control Diagram - Air Suspension
A = HARDWIRED: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AX = FLEXRAY .
| ITEM | DESCRIPTION |
|---|---|
| 1 | Chassis Control Module (CHCM) |
| 2 | Restraints Control Module (RCM) |
| 3 | Jaguar Drive Switchpack (JDS) |
| 4 | Body Control Module/Gateway Module (BCM/GWM) |
| 5 | Anti-Lock Brake System (ABS) control module |
| 6 | Instrument Cluster (IC) |
| 7 | Suspension air supply unit |
| 8 | Front valve block |
| 9 | Rear valve block |
| 10 | Ground |
| 11 | Power supply |
| 12 | Front right height sensor |
| 13 | Front left height sensor |
| 14 | Rear right height sensor |
| 15 | Rear left height sensor |
| 16 | Pressure sensor - Rear valve block |
| 17 | Temperature sensor - Suspension air supply unit |
