Torque Specifications

WARNING: This page is about a different car, the 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

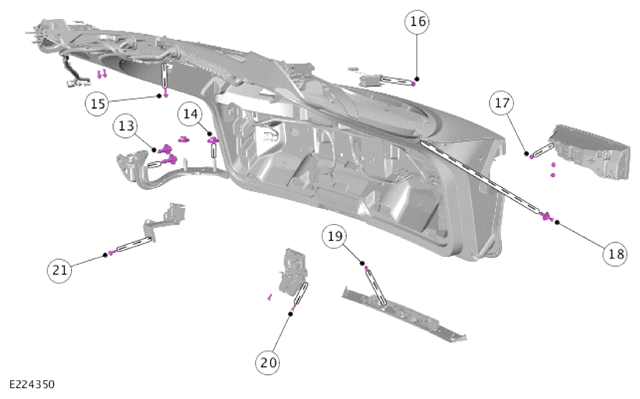

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

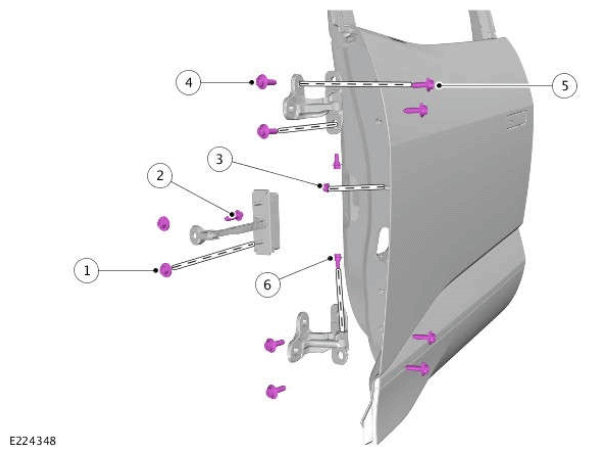

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

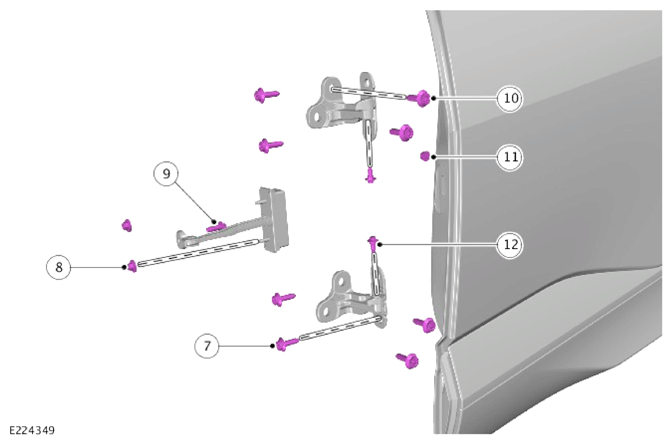

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Front door check arm nuts	10	7	-
2	Front door check arm to A-pillar bolt	13	10	-
3	Front door brace nut	22	16	-
4	Front door hinge to front door bolts	35	26	-
5	Front door hinge to body bolts	35	26	-
6	Front door hinge bolts	13	10	-
7	Rear door hinge to rear door bolts	35	26	-
8	Rear door check arm nuts	10	7	-
9	Rear door check arm to B-pillar bolt	13	10	-
10	Rear door hinge to body bolts	35	26	-
11	Rear door brace nut	22	16	-
12	Rear door hinge bolts	13	10	-
13	Tailgate hinge to body bolts	25	18	-
14	Tailgate to tailgate hinge nuts	25	18	-
15	Tailgate wiring harness ground bolt	5	-	44.2
16	Antenna amplifier nut	10	7	-
17	Tail lamp nuts	2	-	17.7
18	Tailgate strut studs	10	7	-
19	Tailgate handle nut	2	-	17.7
20	Tailgate latch bolts	5	-	44.2
21	Activity key transceiver module bolt	2	-	17.7
