Tailgate Strut (G2220031): Removal
WARNING: This page is about a different car, the 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
- Remove the tailgate trim panel.
Refer to: TAILGATE TRIM PANEL .
- Support the tailgate.

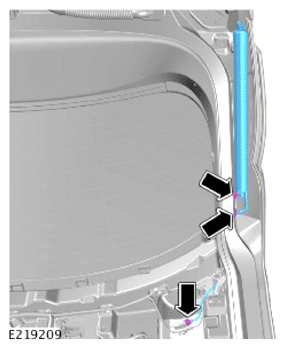

- Remove the clip.
- Release the tailgate strut.
- Disconnect the electrical connector.
- Remove the grommet.

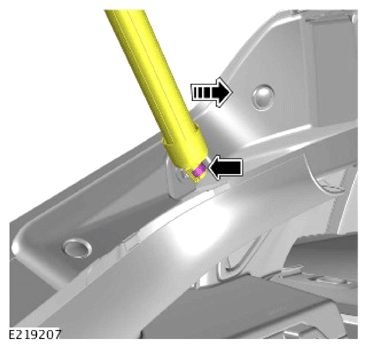

- Remove the stud.
- Remove the tailgate strut.
