Tailgate Hinge (G2220030): Removal

WARNING: This page is about a different car, the 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Remove the front overhead console.
Refer to: FRONT OVERHEAD CONSOLE .
Remove the rear overhead console.
Refer to: REAR OVERHEAD CONSOLE .
Remove the A-pillar trim panel.
Refer to: A-PILLAR TRIM PANEL .
Remove the B-pillar trim panel.
Refer to: B-PILLAR UPPER TRIM PANEL .
Remove the C-pillar trim panel.
Refer to: C-PILLAR TRIM PANEL .
Remove the lower tailgate trim panel.
Refer to: TAILGATE TRIM PANEL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

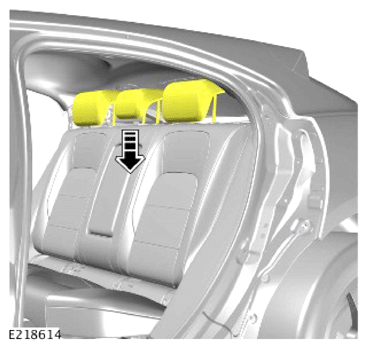

Lower the second row seat head restraints.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

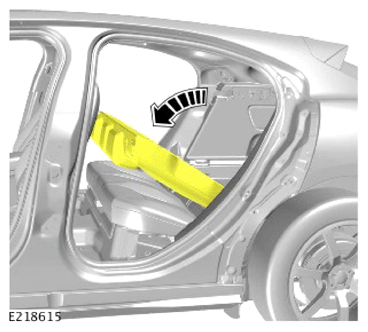

Fold down the second row seat backrests.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

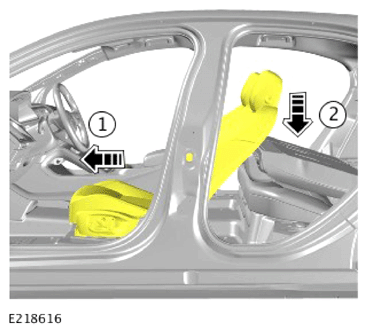

Using each adjustment switch in turn, move the seat fully in all directions.
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

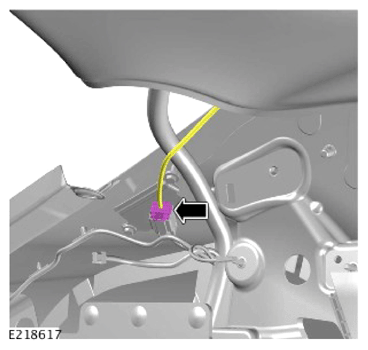

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

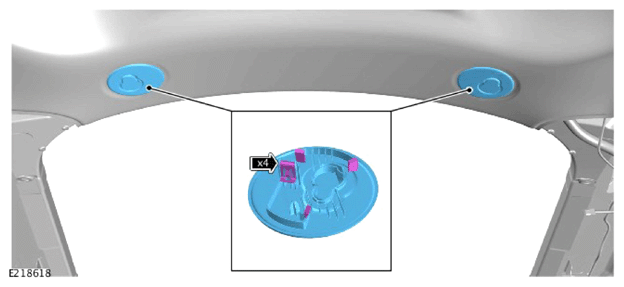

Remove the 2 covers.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

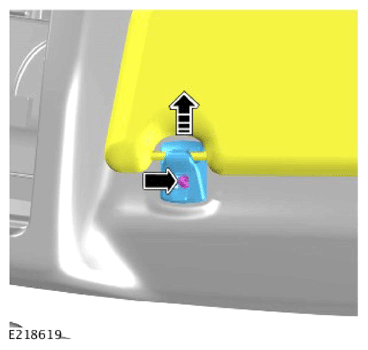

- Release the sun visor.
- Remove the bolt.
- Remove the clip.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

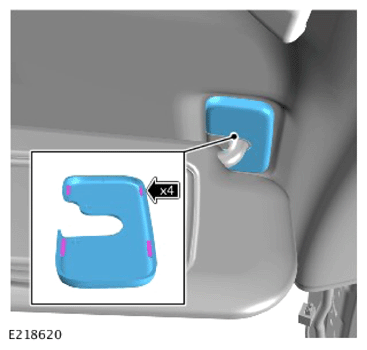

Remove the cover.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

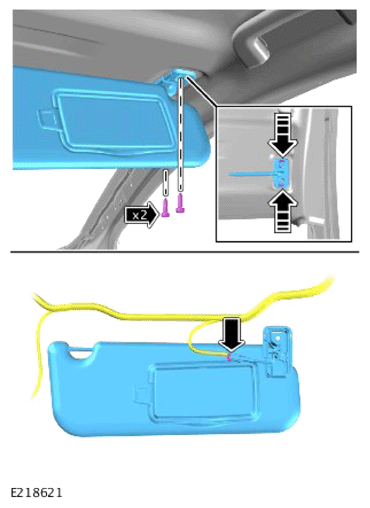

- Fold the sun visor down.
- Remove the 2 bolts.
- Disconnect the electrical connector.
- Remove the sun visor.
NOTE: Do this step for all 4 components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

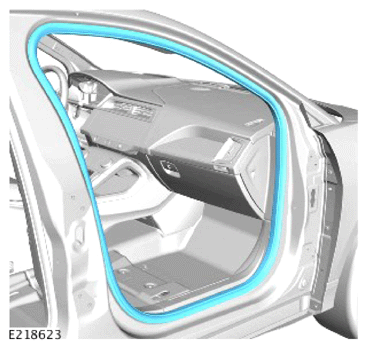

Remove the door aperture seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

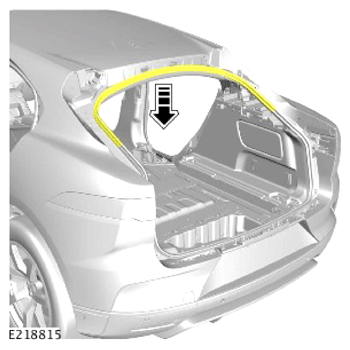

Release the tailgate aperture seal.
NOTE: Do this step for all 4 components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

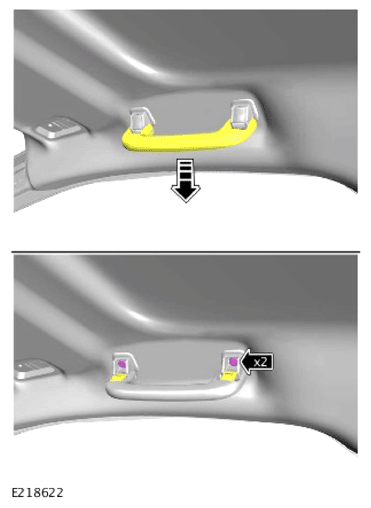

- Fold down the passenger assist handle.
- Release the 2 access covers.
- Remove the 2 bolts.
NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

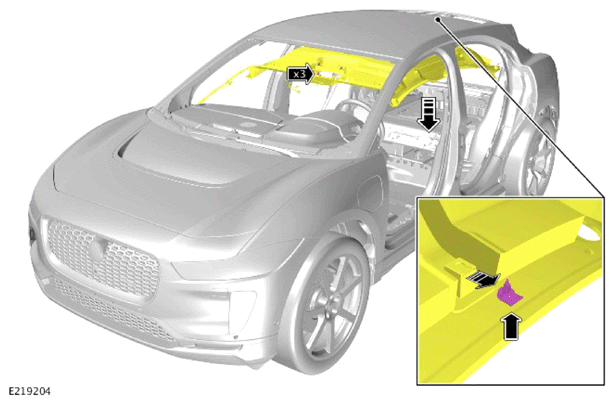

Release the headliner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

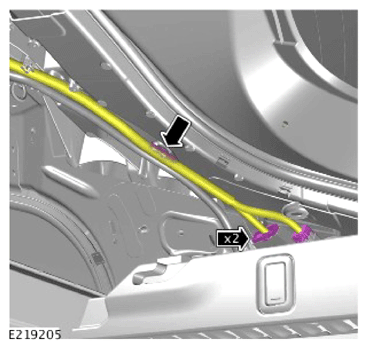

- Disconnect the 2 electrical connectors.
- Remove the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

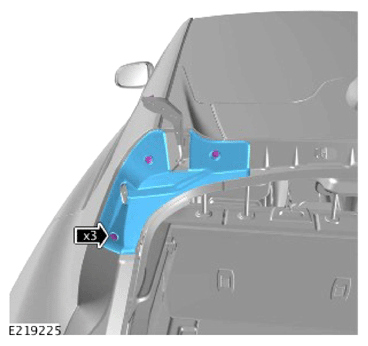

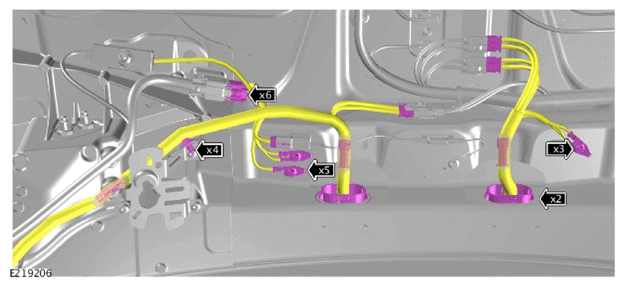

- Remove the 3 bolts.
- Disconnect the 11 electrical connectors.
- Remove the 4 clips.
- Release the 2 grommets.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

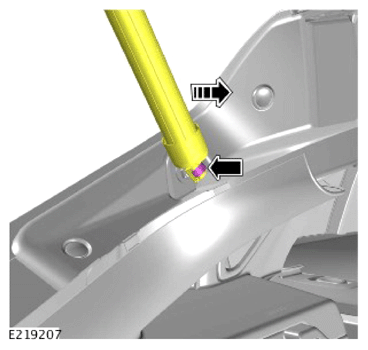

- Support the tailgate.
- Remove the clip.
- Release the strut.
NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

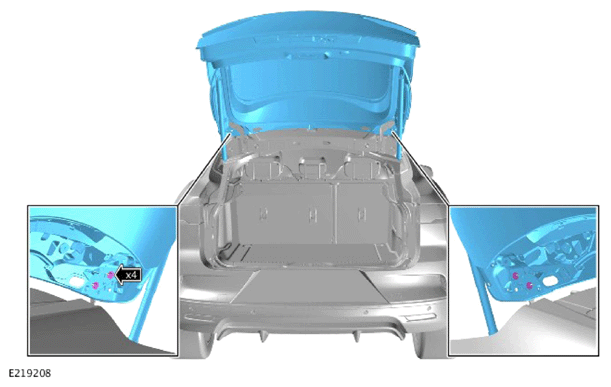

- Remove the 4 nuts.
- With assistance, remove the tailgate assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 clips.
- Remove the moulding.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

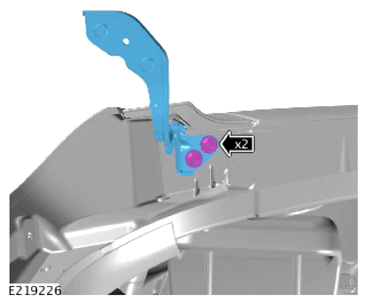

- Remove the 2 bolts.
- Remove the tailgate hinge.
