Tailgate (G2220029): Removal

WARNING: This page is about a different car, the 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Remove the front overhead console.

    Refer to: FRONT OVERHEAD CONSOLE .

  2. Remove the rear overhead console.

    Refer to: REAR OVERHEAD CONSOLE .

  3. Remove the A-pillar trim panel.

    Refer to: A-PILLAR TRIM PANEL .

  4. Remove the B-pillar trim panel.

    Refer to: B-PILLAR UPPER TRIM PANEL .

  5. Remove the C-pillar trim panel.

    Refer to: C-PILLAR TRIM PANEL .

  6. Remove the lower tailgate trim panel.

    Refer to: TAILGATE TRIM PANEL .

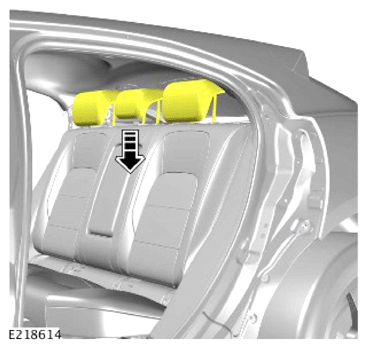

  7. G13924675Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Lower the second row seat head restraints.

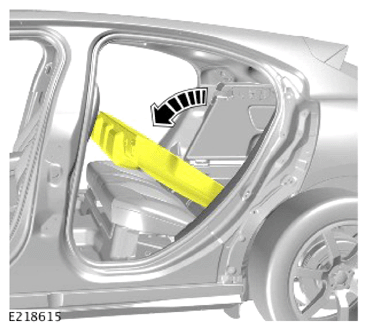

  8. G13924676Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Fold down the second row seat backrests.

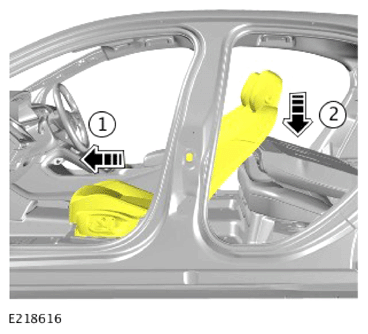

  9. G13924677Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using each adjustment switch in turn, move the seat fully in all directions.

  10. Remove the rear spoiler.

    Refer to: REAR SPOILER .

  11. Disconnect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT .

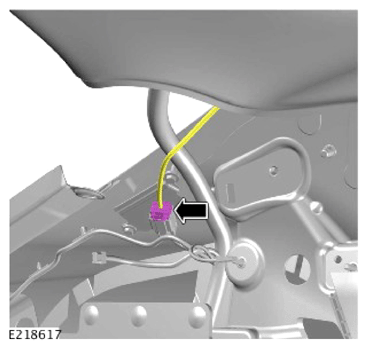

  12. G13924678Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector at the C-pillar.

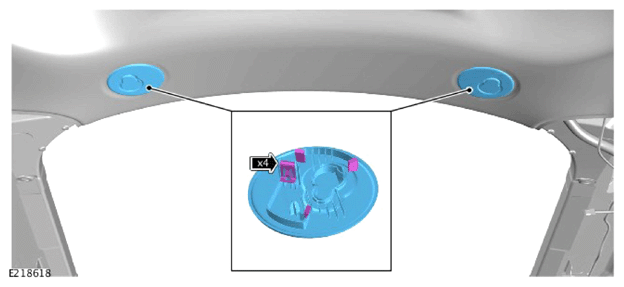

  13. G13924679Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 covers.

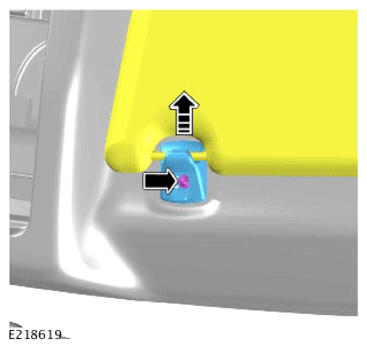

  14. NOTE: Repeat this step for the other side.
    G13924680Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the sun visor.
    • Remove the bolt.
    • Remove the clip.

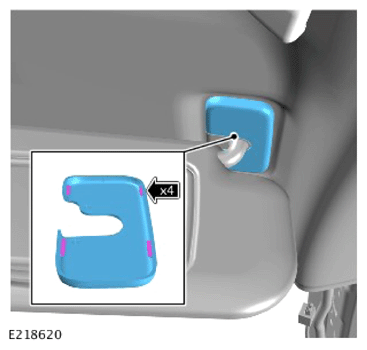

  15. NOTE: Repeat this step for the other side.
    G13924681Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the cover.

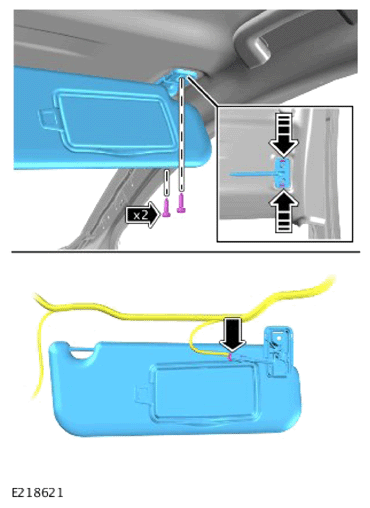

  16. NOTE: Repeat this step for the other side.
    G13924682Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Fold the sun visor down.
    • Remove the 2 bolts.
    • Disconnect the electrical connector.
    • Remove the sun visor.
  17. NOTE: Do this step for all 4 components.

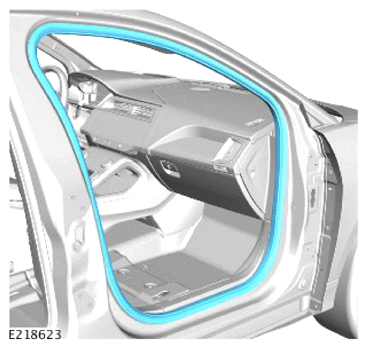

    G13924683Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the door aperture seal.

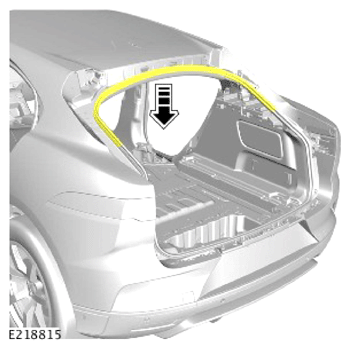

  18. G13924684Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the tailgate aperture seal.

  19. NOTE: Do this step for all 4 components.

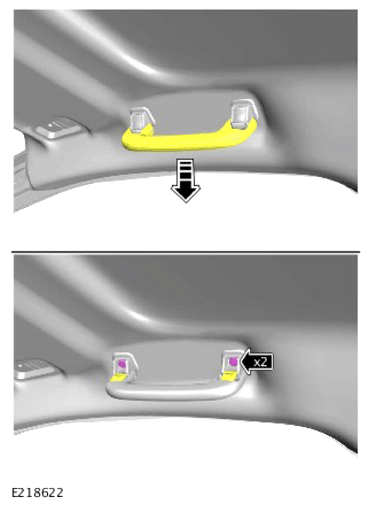

    G13924685Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Fold down the passenger assist handle.
    • Release the 2 access covers.
    • Remove the 2 bolts.

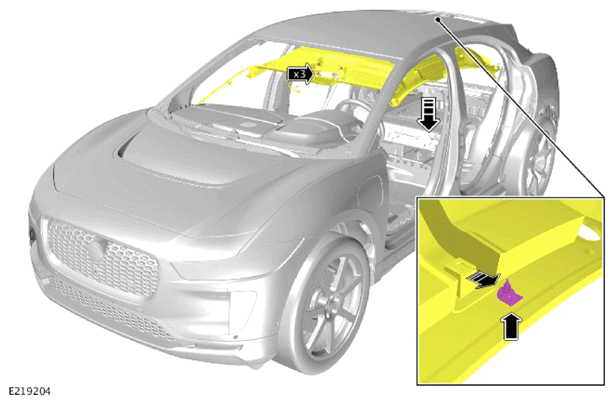

  20. NOTE: This step requires the aid of another technician.
    G13924686Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the headliner.

  21. NOTE:
    • This step requires the aid of another technician.
    • If equipped.

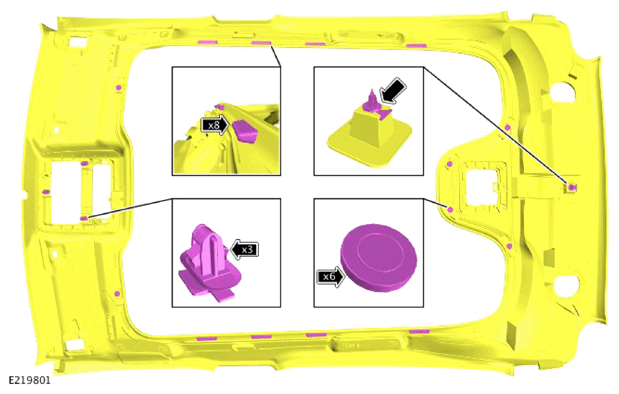

    G13924687Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 12 clips.
    • Release the 6 magnets.
    • Release the headliner.

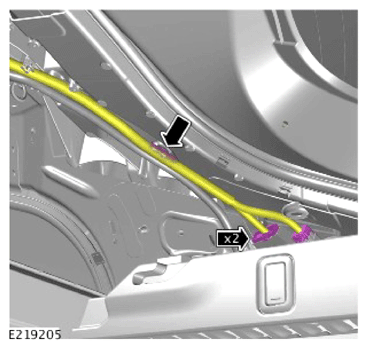

  22. G13924688Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 electrical connectors.
    • Remove the clip.

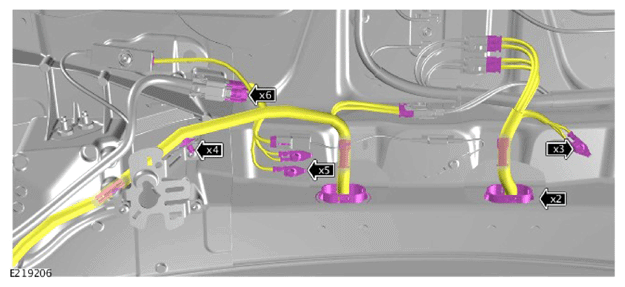

  23. G13924689Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Disconnect the 11 electrical connectors.
    • Remove the 4 clips.
    • Release the 2 grommets.

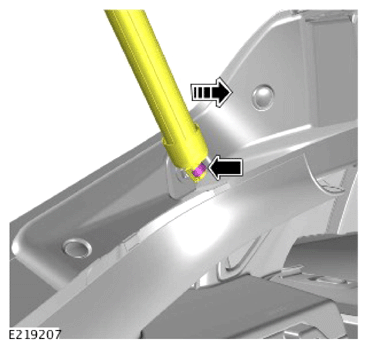

  24. NOTE: Repeat this step for the other side.
    G13924690Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Support the tailgate.
    • Remove the clip.
    • Release the strut.

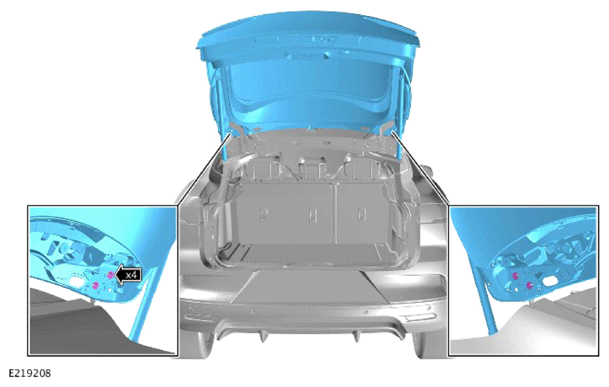

  25. NOTE: This step requires the aid of another technician.
    G13924691Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 nuts.
    • With assistance, remove the tailgate assembly.
  26. NOTE:
    • Repeat this step for the other side.
    • Only do the following step(s) if a new component is to be installed.

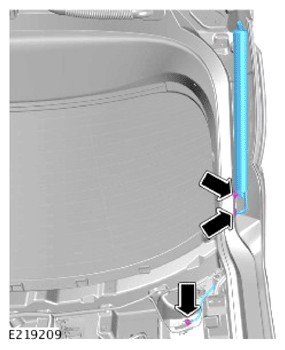

    G13924692Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Remove the grommet.
    • Remove the stud.
    • Remove the strut.
  27. NOTE: Repeat this step for the other side.

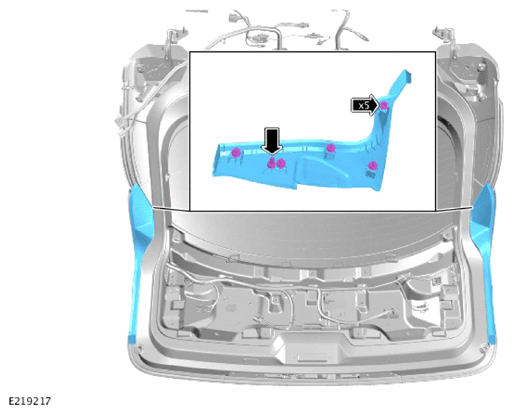

    G13924693Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the moulding.

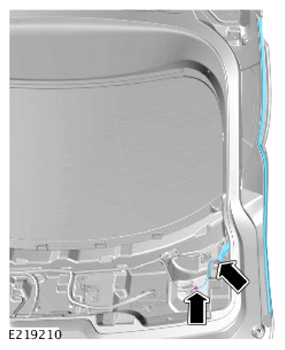

  28. NOTE: Repeat this step for the other side.
    G13924694Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Remove the clip.
    • Remove the tailgate anti-trap sensor.

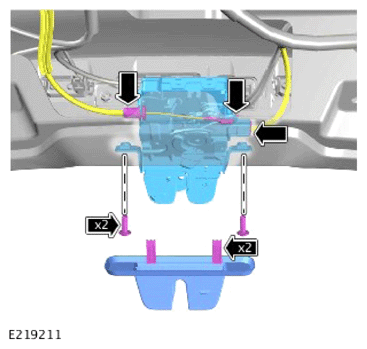

  29. G13924695Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the cover.
    • Release the 2 clips.
    • Disconnect the electrical connector.
    • Remove the 2 bolts.
    • Remove the tailgate latch.

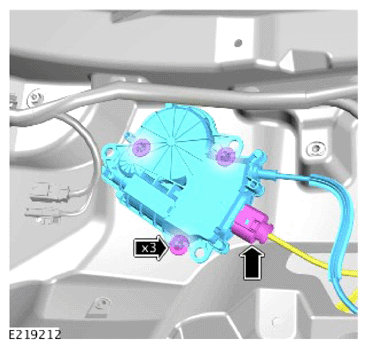

  30. G13924696Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Remove the tailgate latch actuator.

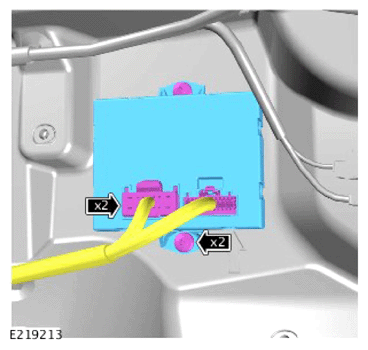

  31. G13924697Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 electrical connectors.
    • Remove the 2 clips.
    • Remove the Tailgate Control Module (TGCM).

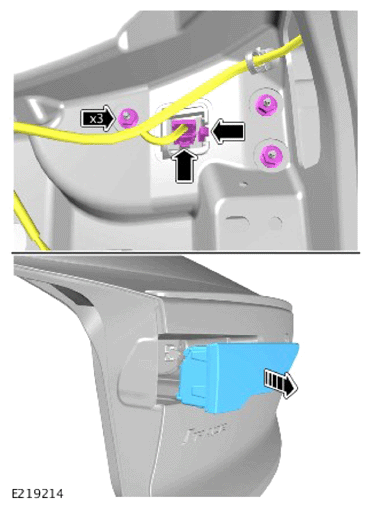

  32. NOTE: Repeat this step for the other side.
    G13924698Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Remove the 3 nuts.
    • Release the clip.
    • Remove the tail lamp.

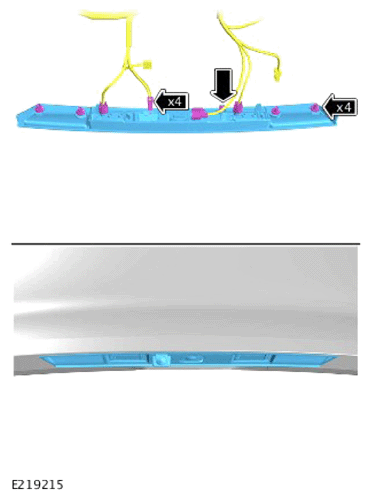

  33. G13924699Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the nut.
    • Disconnect the 4 electrical connectors.
    • Remove the tailgate handle.

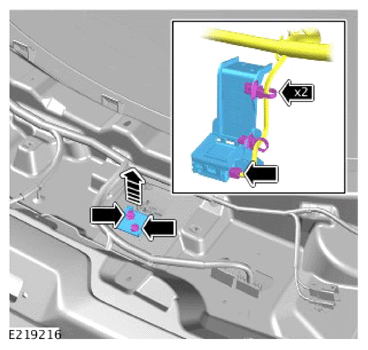

  34. G13924700Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 clips.
    • Remove the bolt.
    • Disconnect the electrical connector.
    • Remove the activity key transceiver module.

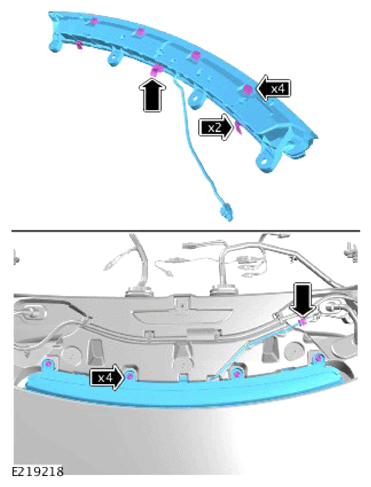

  35. G13924701Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Remove the 4 screws.
    • Remove the high mounted stoplamp.

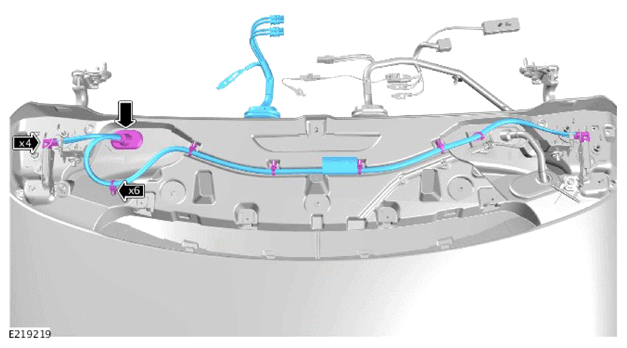

  36. G13924702Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 4 electrical connectors.
    • Remove the 6 clips.
    • Release the grommet.
    • Remove the wiring harness.

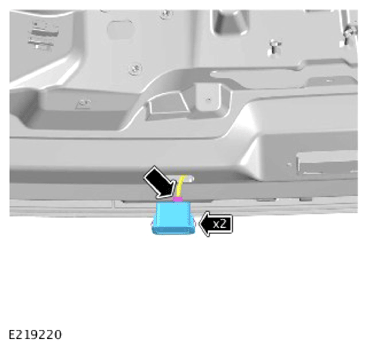

  37. G13924703Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the power tailgate close switch.
    • Disconnect the electrical connector.
    • Remove the power tailgate close switch.

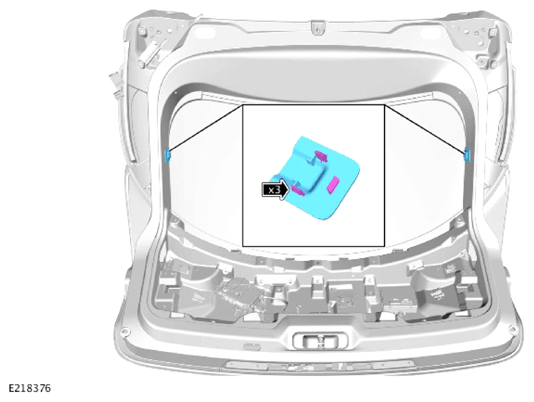

  38. G13924704Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 access covers.

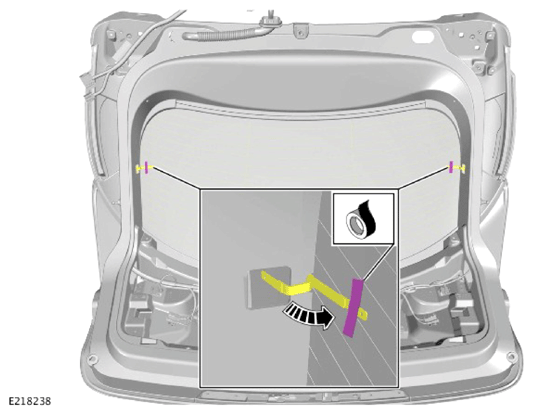

  39. G13924705Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 electrical connectors.
    • Secure the 2 electrical connectors with adhesive tape.

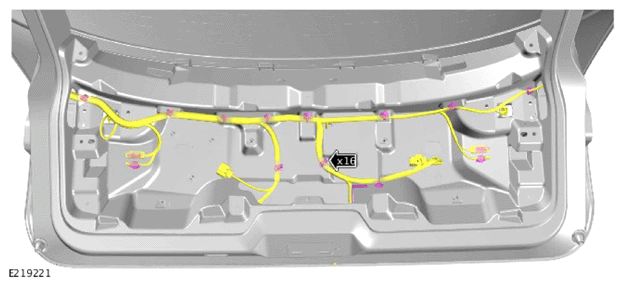

  40. G13924706Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 16 clips.
    • Release the tailgate wiring harness.

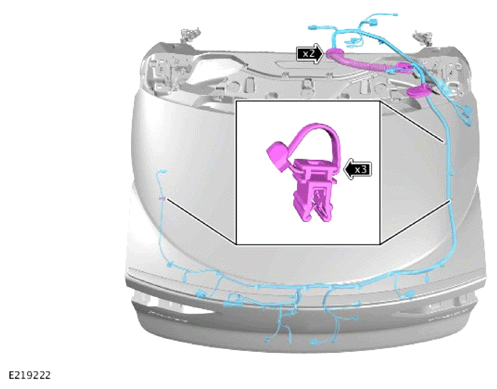

  41. G13924707Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 clips.
    • Release the 2 grommets.
    • Remove the tailgate wiring harness.
  42. NOTE: Repeat this step for the other side.

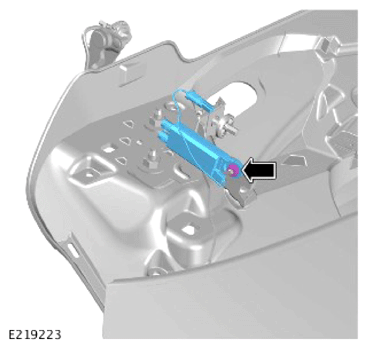

    G13924708Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the nut.
    • Remove the antenna amplifier.
  43. WARNING: Wear safety goggles and protective gloves.
    CAUTION:
    • Protect the surrounding paintwork to avoid damage.
    • Protect the surrounding components.

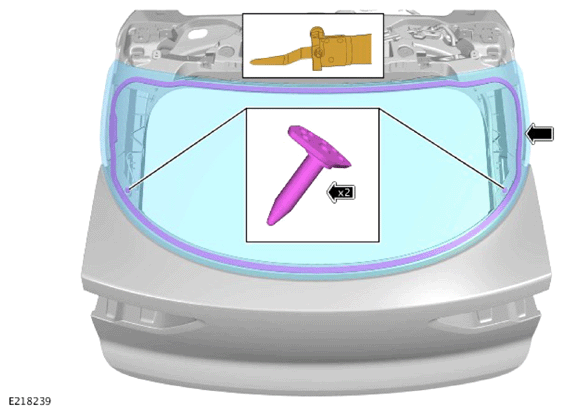

    G13924709Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Carefully cut through the sealant using a glazing knife.

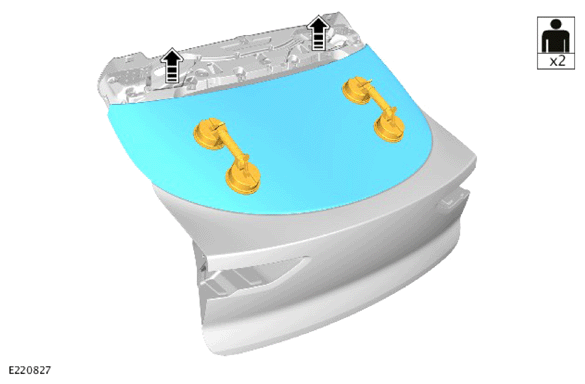

  44. NOTE: This step requires the aid of another technician.
    G13924710Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    With assistance, remove the tailgate window.
