Rear Door (G2201936): Removal

WARNING: This page is about a different car, the 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Protect the surrounding paintwork to avoid damage.

NOTE:

This procedure contains illustrations for left side components, right side components are similar.
This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Remove the rear door window regulator.
Refer to: REAR DOOR WINDOW REGULATOR .
Remove the rear door latch assembly.
Refer to: REAR DOOR LATCH .
Remove the door window.
Refer to: REAR DOOR WINDOW .
Remove the rear door fixed window.
Refer to: REAR DOOR FIXED WINDOW .
Remove the rear door bass speaker.
Refer to: REAR DOOR BASS SPEAKER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

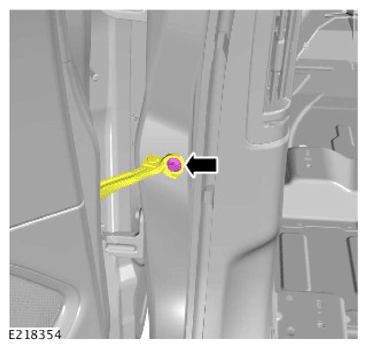

- Remove the bolt.
- Detach the rear door check arm from the B-pillar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

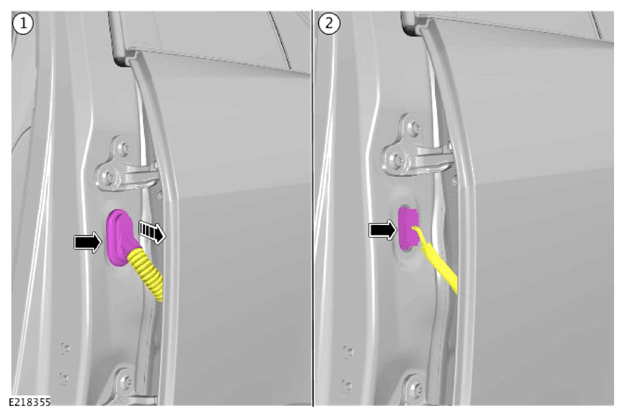

- Release the rubber boot.
- Disconnect the door wiring harness from the body wiring harness.
WARNING: The component(s) may be heavy. Take extra care when handling.

NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

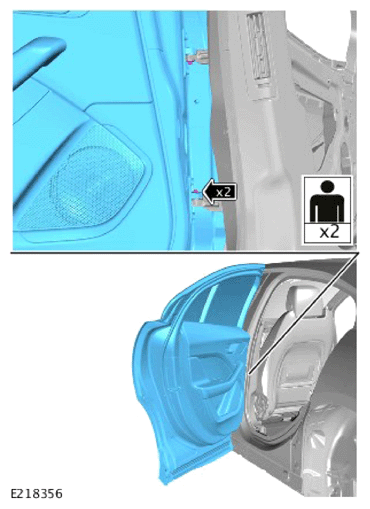

- Remove the 2 bolts.
- Remove the rear door.
NOTE:
- Only do the following step(s) if a new component is to be installed.
- Mark the position of the component prior to removal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

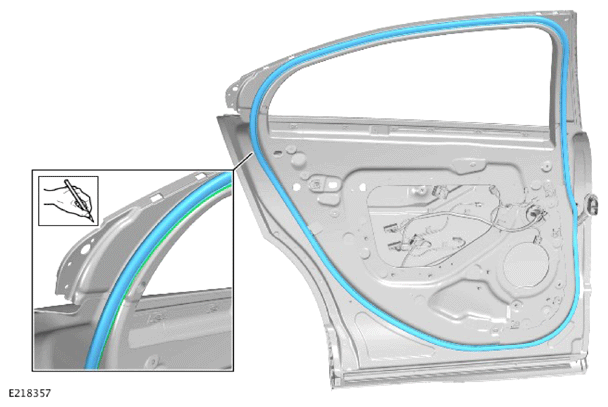

Remove and discard the rear door seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

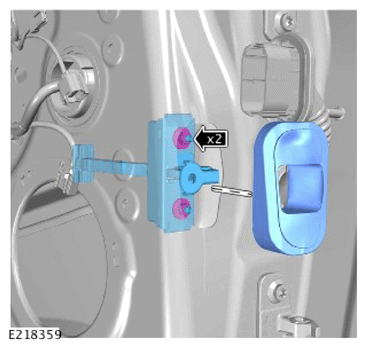

- Remove the Noise, Vibration and Harshness (NVH) material.
- Remove the 2 nuts.
- Remove the check arm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

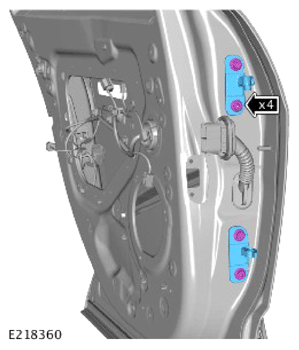

- Remove the 4 bolts.
- Remove the 2 rear door hinges.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

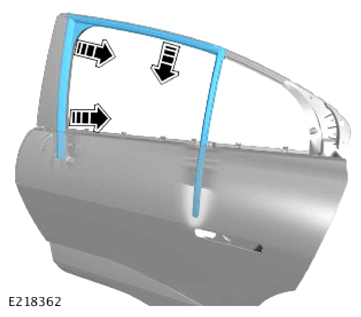

Remove the rear door window runner seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

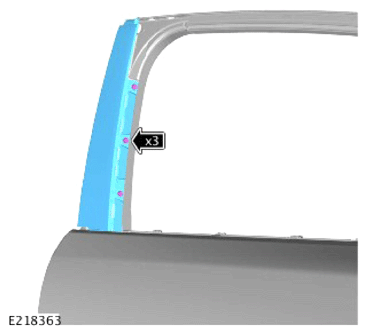

- Remove the 3 bolts.
- Remove the rear door frame finisher.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

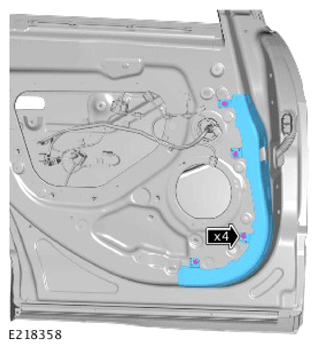

- Remove the 4 clips.
- Remove the rear door lower trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

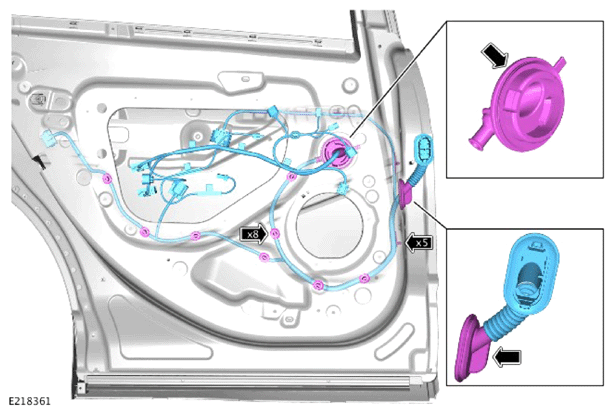

Remove the rear door wiring harness.
CAUTION: Use a suitable trim tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

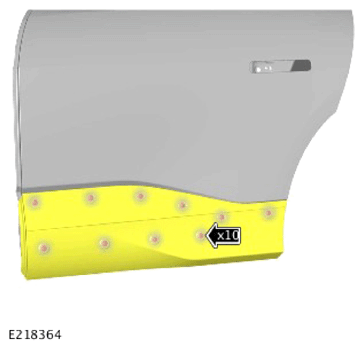

Release the 10 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

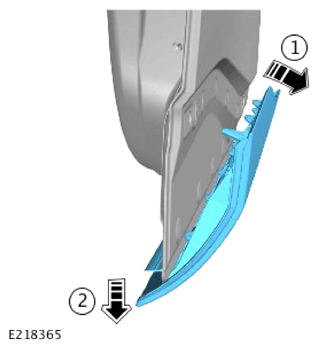

- Rotate the rear door lower moulding.
- Unhook the rear door lower moulding from the rear door.
