Tailgate Latch Scuff Repair (G2767762): Activation

WARNING: This page is about a different car, the 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Install the appropriate paintwork protection to the vehicle exterior and interior before completing this service instruction.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

NOTE:
- This step gives details of the parts required for this repair.
- *An allowance equivalent to 45 sterling has been allocated to locally source the repair kit where, due to local legislation, certain markets cannot import aerosol paints.
- T4A42053PVJ - Repair kit - Black - Quantity 1
- *ZZZ001 - Repair kit materials - 45 Allowance
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

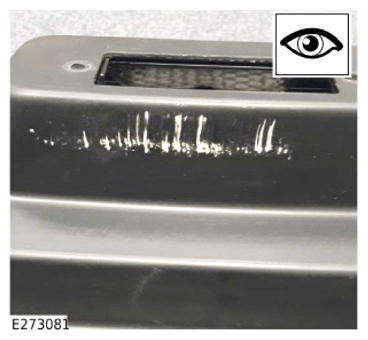

Identify the damage is similar to the illustration.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Apply vehicle protection to paint and trim.

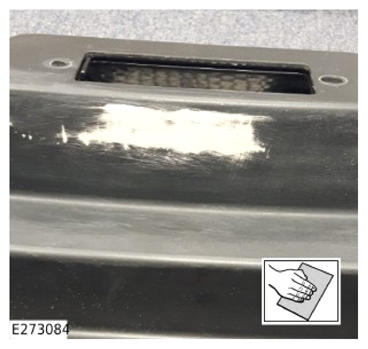

- Use the sandpaper supplied in the repair kit to prepare the damaged area for paint. Use P180 then P400 until the area is smooth and consistent with the surrounding area.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

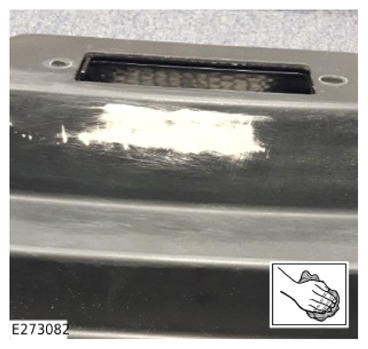

Use the surface cleaner wipes supplied in the repair kit to clean the damaged area.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

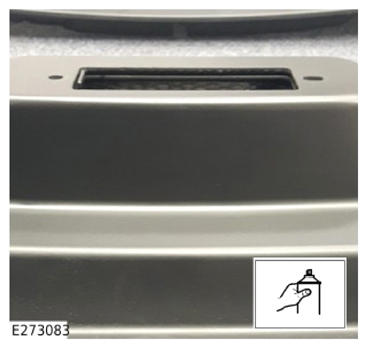

- Paint the repaired area with the EQUILIBRIUM spray paint from the repair kit. 2 or 3 coats may be required. Allow 5 minutes between each coat.
- Allow the paint to dry for at least 15 minutes after application of the final coat.
