Torque Specifications
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

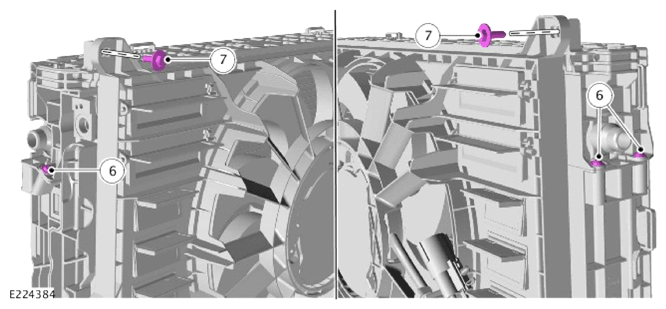

COMPONENT TORQUE LOCATION

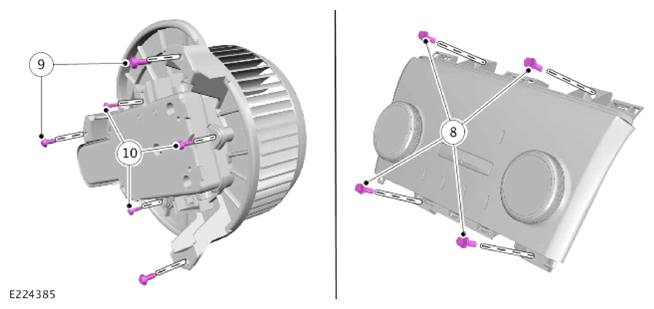

COMPONENT TORQUE LOCATION

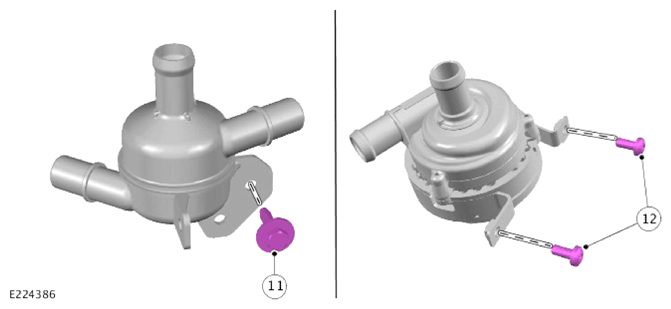

COMPONENT TORQUE LOCATION

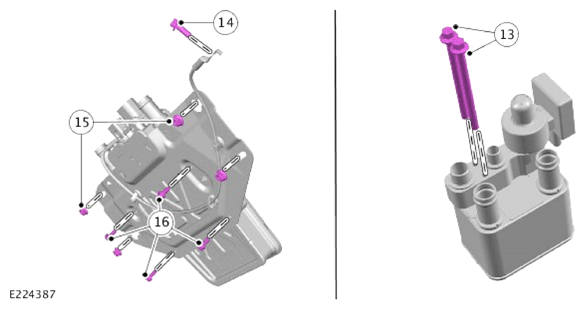

COMPONENT TORQUE LOCATION

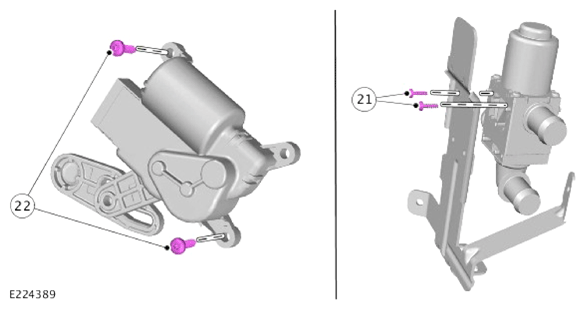

COMPONENT TORQUE LOCATION

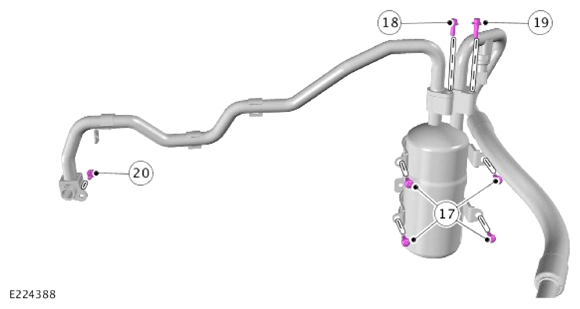

COMPONENT TORQUE LOCATION

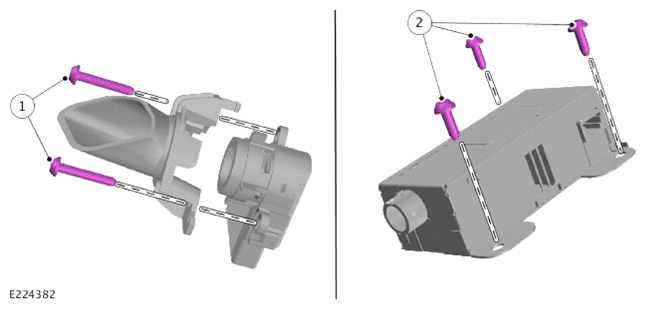

TORQUE SPECIFICATION

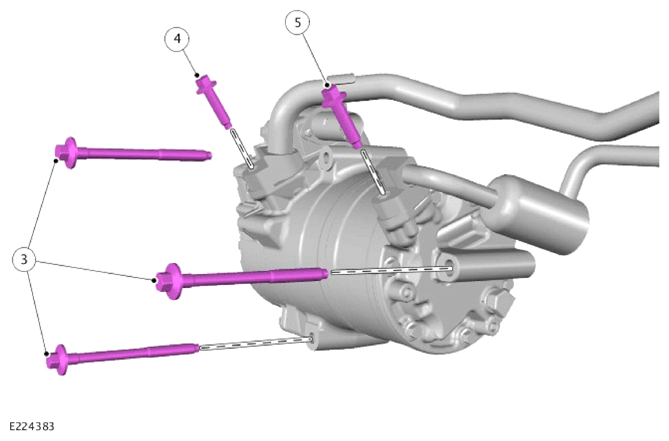

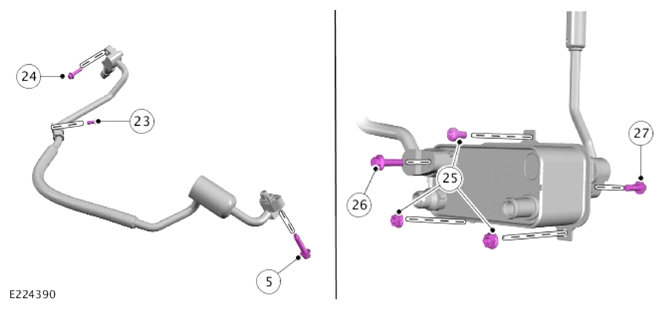

| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|
| 1 | In car temperature sensor screws | 1.5 | - | 13.3 |
| 2 | Ionization unit screws | 1.5 | - | 13.3 |
| 3 | Air Conditioning (A/C) compressor mounting bolts | 24 | 18 | - |
| 4 | Inlet pipe to A/C compressor bolt | 24 | 18 | - |
| 5 | Outlet pipe to A/C compressor bolt | 24 | 18 | - |
| 6 | Cooling pack upper trim retaining screws | 4 | - | 35.4 |
| 7 | Cooling fan shroud retaining bolts | 4.8 | 42.5 | |
| 8 | Integrated control panel bolts | 8 | - | 70.8 |
| 9 | Blower assembly mounting screws | 2.4 | - | 21.2 |
| 10 | Blower mounting screws | 1.3 | - | 11.5 |
| 11 | Coolant degas separator bolt | 7 | - | 62 |
| 12 | Climate control coolant pump mounting screws | 10 | 7 | - |
| 13 | Electric drive cooler bolts | 12 | 9 | - |
| 14 | High Voltage interior heater ground cable to body bolt | 10 | 7 | - |
| 15 | High Voltage interior heater assembly mounting bolts | 10 | 7 | - |
| 16 | High Voltage interior heater to bracket bolts | 10 | 7 | - |
| 17 | Accumulator bracket bolts | 10 | 7 | - |
| 18 | A/C pipe to accumulator bolt | 8.5 | - | 75.2 |
| 19 | A/C pipe to accumulator bolt | 10 | 7 | - |
| 20 | A/C pipe to valve block bolt | 8.5 | - | 75.2 |
| 21 | Coolant system isolation valve mounting screws | 1.6 | - | 14.2 |
| 22 | Recirculation blend door actuator mounting screws | 1.5 | - | 13.3 |
| 23 | A/C compressor low pressure pipe mounting bolt | 8 | - | 70.8 |
| 24 | A/C pipe to valve block bolt | 12 | 9 | - |
| 25 | Indirect condenser mounting bolts | 10 | 7.3 | - |
| 26 | A/C pipe to the indirect condenser bolt | 12 | 9 | - |
| 27 | A/C pipe to the rear of the indirect condenser bolt | 12 | 9 | - |

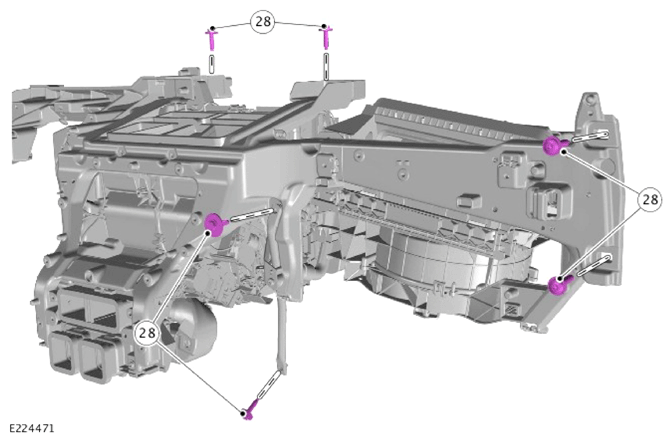

| 28 | Heater core and evaporator assembly bolts | 10.5 | 7.8 | - |
