Rear Right Face Distribution Motor (G2225323): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the floor console rear surround trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the floor console front surround trim.
CAUTION: Note the installed position of the component(s) prior to removal.

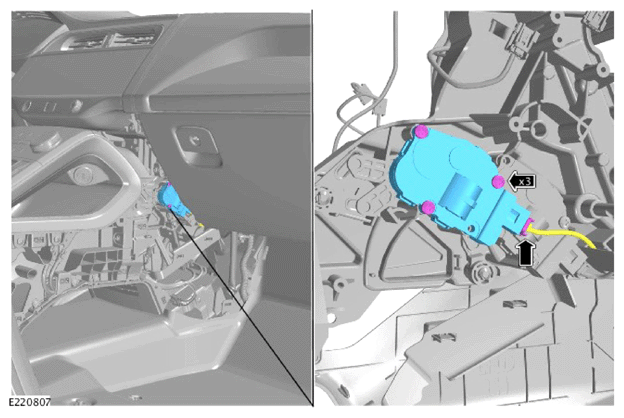

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Remove the 3 screws.
- Remove the air distribution motor.
