Rear Left Temperature Blend Motor (G2225330): Removal
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
The following step(s) applies to:
Left-hand drive vehicles
- Remove the instrument panel lower trim panel.
Refer to: INSTRUMENT PANEL LOWER TRIM PANEL .
The following step(s) applies to:
Right-hand drive vehicles
- Remove the glovebox.
Refer to: GLOVEBOX .
The following step(s) applies to:
All vehicles
-
CAUTION: Note the installed position of the component(s) prior to removal.

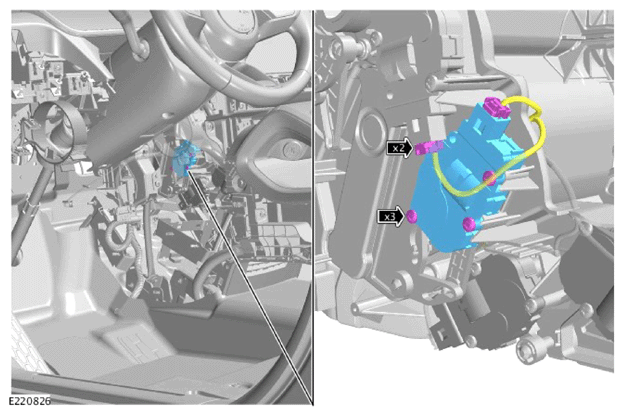

- Disconnect the 2 electrical connectors.
- Remove the 3 screws.
- Remove the air distribution motor.
