Passenger Side Vent (G2217923): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

CAUTION: Do not use excessive force to remove the component.

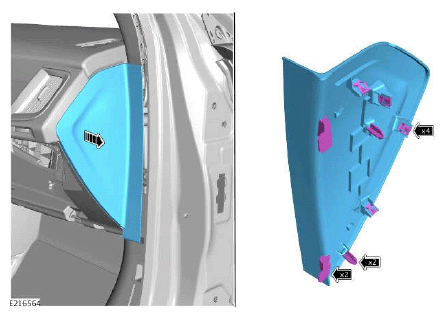

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 4 clips.
- Release the plastic retainers.
- Remove the trim panel.

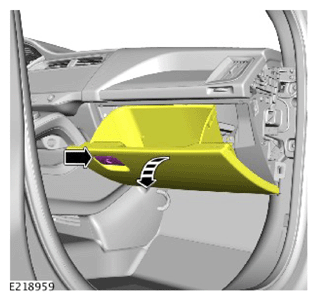

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Open the glovebox.
CAUTION: Do not use excessive force to remove the component. Make sure that all fixings are fully released.

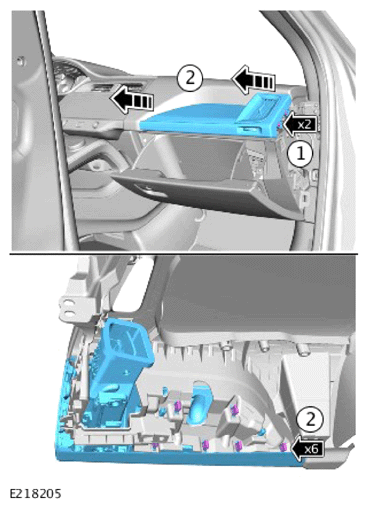

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 screws.
- Remove the trim assembly.
NOTE: Only do the following steps if a new component is to be installed.

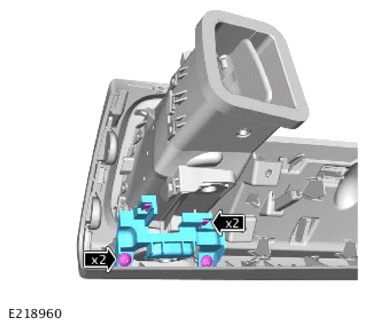

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 screws.
- Remove the supporting bracket.
CAUTION: Do not use excessive force to remove the component. Make sure that all fixings are fully released.

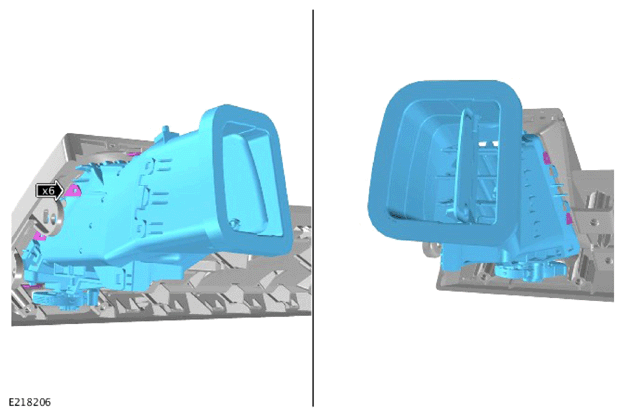

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release from the 6 clips.
- Remove the passenger side face level vent.
