Orifice Tube (G2401428): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Evacuate the Air Conditioning (A/C) system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
Remove the Direct Current to Direct Current converter (DC/DC).
Refer to: DIRECT CURRENT TO DIRECT CURRENT CONVERTER .
Remove the auxiliary battery.
Refer to: AUXILIARY BATTERY .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the auxiliary battery tray.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

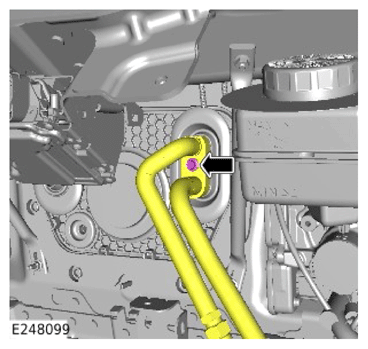

- Remove the 2 A/C pipe bracket nuts.
- Remove the 2 A/C pipe bracket bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

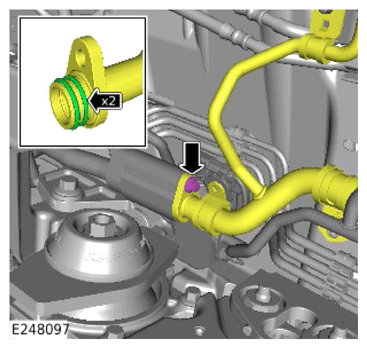

- Remove the bolt.
- Disconnect the Low Pressure (LP) A/C pipe from the connector tube.
- Remove and discard the 2 O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove the connector tube.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

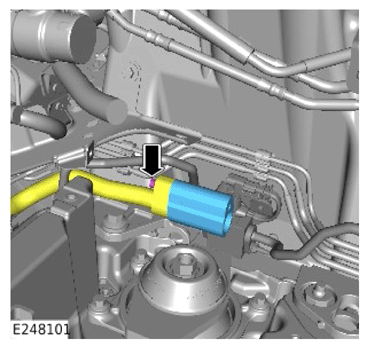

- Remove the nut.
- Disconnect the High Pressure (HP) A/C pipe from the shut off valve.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

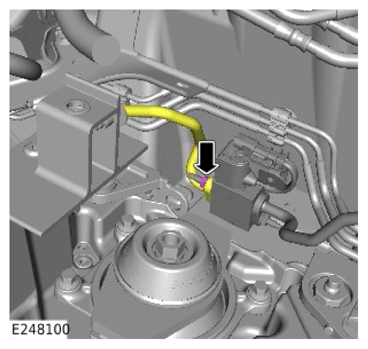

Remove the A/C pipe clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

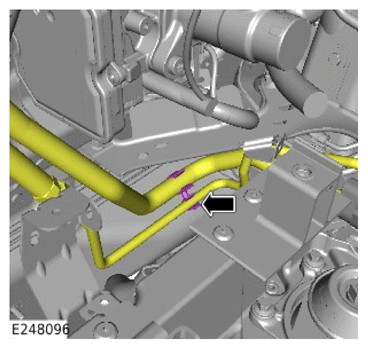

- Remove the bolt.
- Release the 2 A/C pipes from the evaporator.

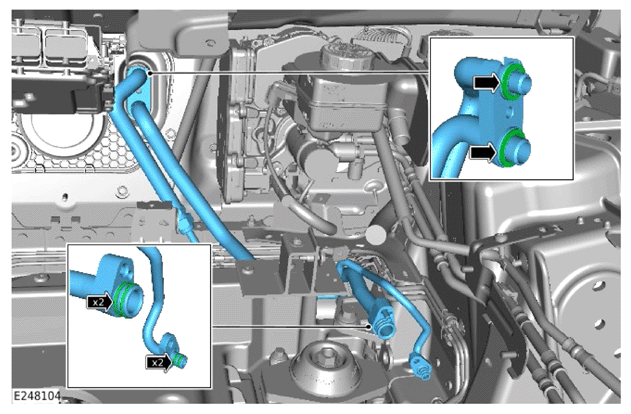

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

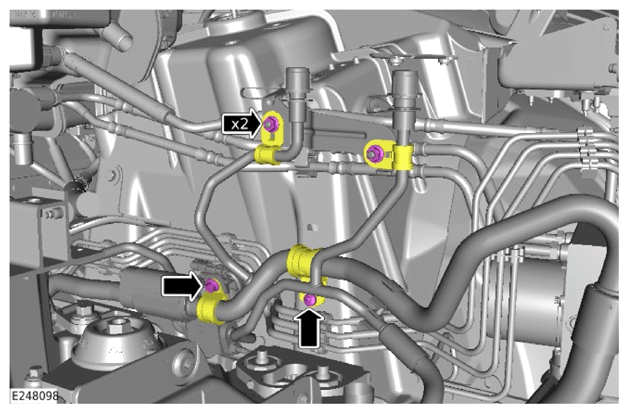

- Remove the 2 A/C pipes.
- Remove and discard the 6 O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

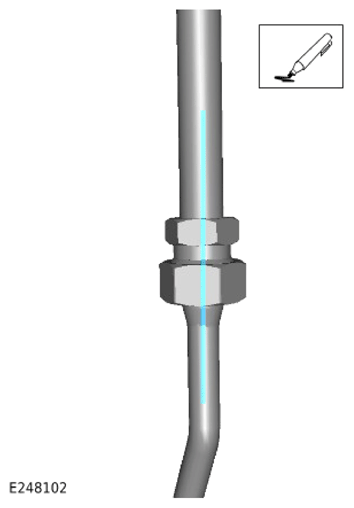

Mark the installed position of the A/C pipe.

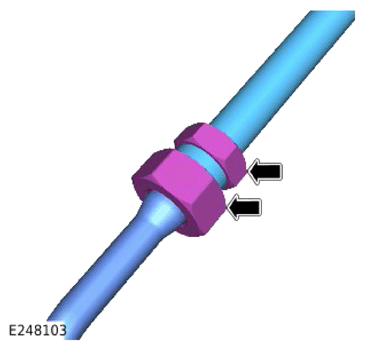

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the A/C pipe coupling.
NOTE: Note the orientation of the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

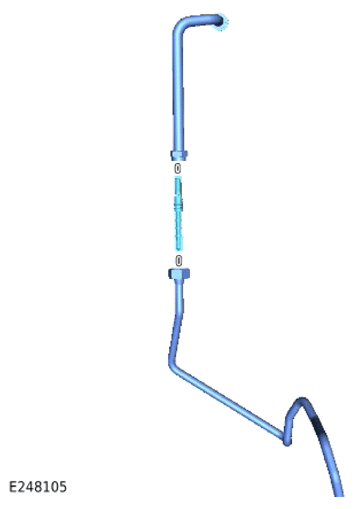

Remove the orifice tube.
