Integrated Control Panel (G2219030): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Remove the floor console surround trim.
Refer to: FLOOR CONSOLE SURROUND TRIM .
Remove the front row seats.
Refer to: FRONT ROW SEAT - VEHICLES WITH: POWER SEATS .
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the access panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

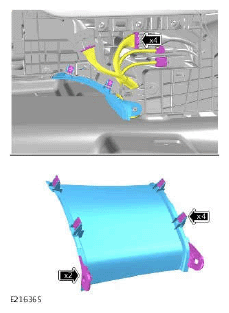

- Disconnect the 4 electrical connectors.
- Remove the floor console rear lower trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

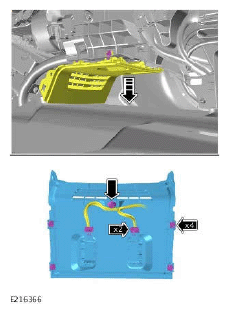

- Release the floor console front lower trim.
- Disconnect the 2 electrical connectors.
- Remove the clip.
- Remove the floor console front lower trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 4 electrical connectors.
- Remove the 2 clips.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

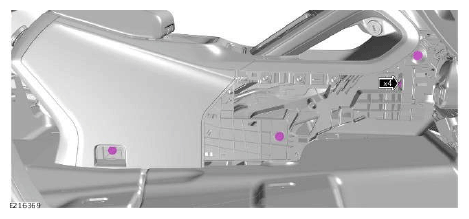

- Remove the screw.
- Remove the 3 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

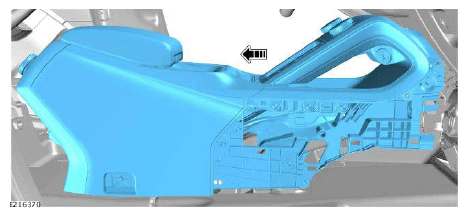

Remove the floor console.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

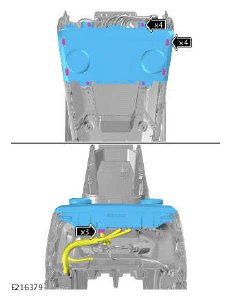

- Release the floor console rear surround trim.
- Disconnect the 4 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

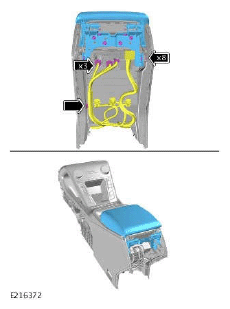

- Disconnect the 3 electrical connectors.
- Remove the clip.
- Remove the 8 screws.
- Remove the armrest.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the cup holder.

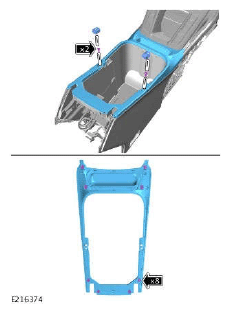

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

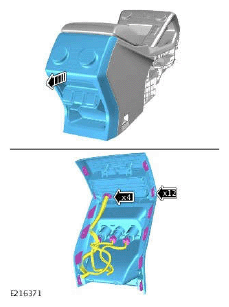

- Remove the 2 rubber bump stops.
- Remove the 2 screws.
- Remove the floor console upper surround trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

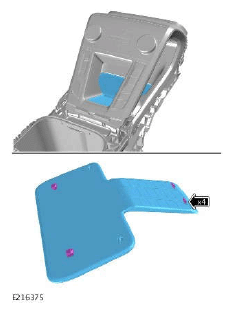

Remove the floor console rubber mat.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 screws.
- Release the trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 2 electrical connectors.
- Remove the 8 screws.
- Remove the Jaguar Drive Switchpack (JDS).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the floor console front upper trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- Release the Integrated Control Panel (ICP).
- Disconnect the 3 electrical connectors.
- Remove the ICP.
