In-Vehicle Temperature Sensor (G2218054): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
Left side shown below, right side similar.

CAUTION: Do not use excessive force to remove the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

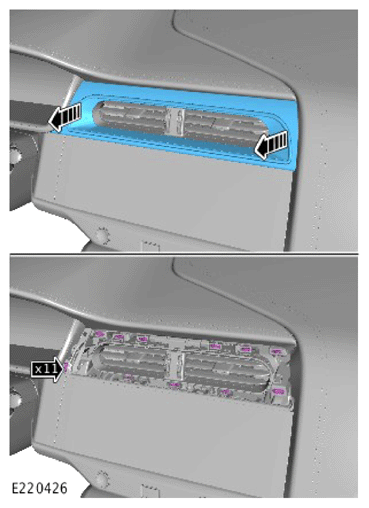

Release the center vent trim finisher from the 11 retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

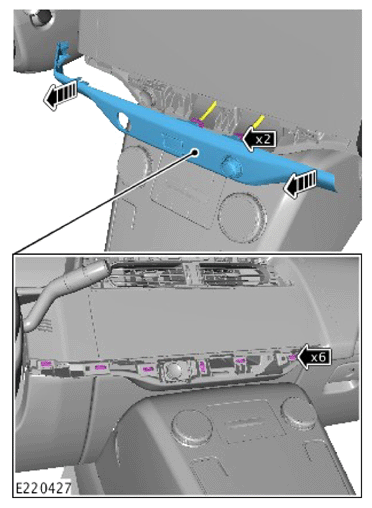

Release the instrument panel trim from the 6 retaining clips and disconnect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

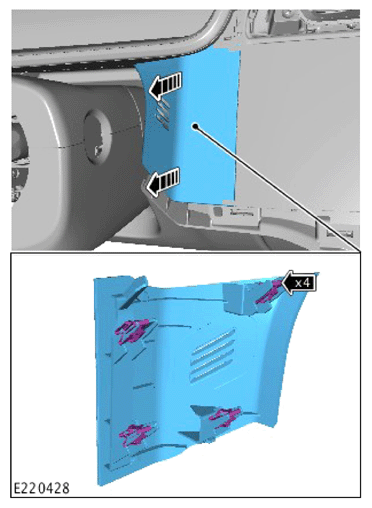

Release the lower instrument panel lower trim from the 4 retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

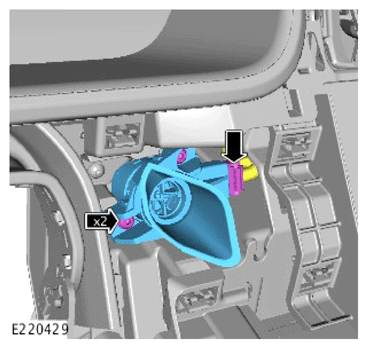

Disconnect the electrical connector and remove the 2 in vehicle temperature sensor screws.
