HVAC Control Module (G2309658): Removal
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Remove the glovebox.
Refer to: GLOVEBOX .

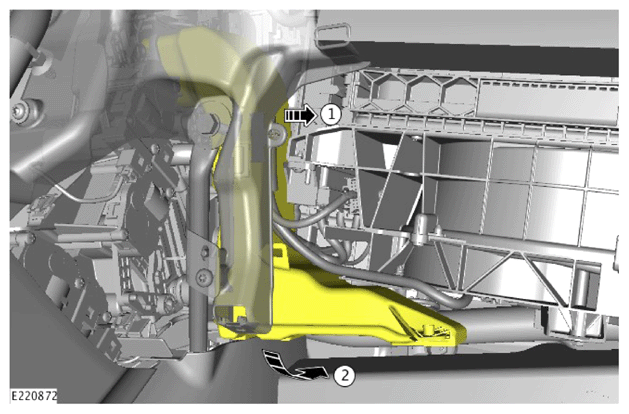

Position the air duct away from the HVAC Control Module (HVAC) control module as illustrated.

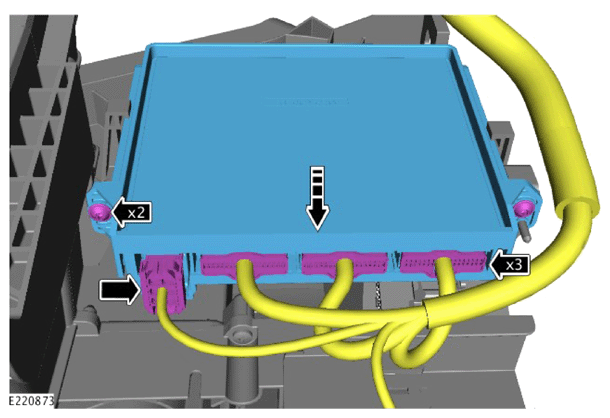

- Disconnect the 4 HVAC control module electrical connectors.
- Remove the 2 screws.
- Remove the HVAC control module.
