Electric Vehicle Battery Cooler Assembly (G2220040): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Recover the Air Conditioning (A/C) refrigerant.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
Remove the front compartment left trim panel.
Refer to: FRONT COMPARTMENT LEFT TRIM PANEL .
Remove the front compartment right trim panel.
Refer to: FRONT COMPARTMENT RIGHT TRIM PANEL .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the front stowage compartment.
Refer to: FRONT STOWAGE COMPARTMENT .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

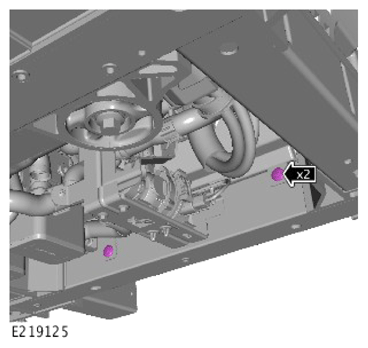

Remove the 2 lower cover retaining screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

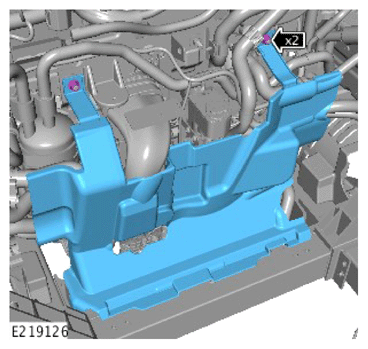

Remove the lower cover.
Drain the electric drive cooling system.
Refer to: ELECTRIC DRIVE COOLING SYSTEM DRAIN AND FILL .
WARNING: Be prepared to collect escaping fluid.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

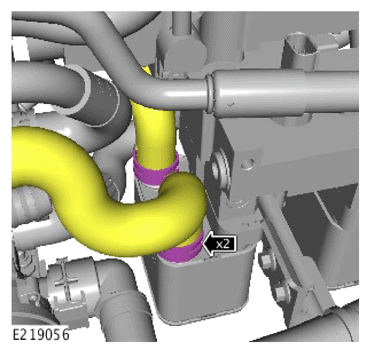

Release the 2 electric vehicle battery cooler coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

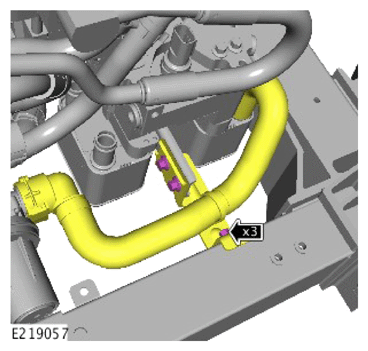

Release the electric vehicle battery cooler support bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

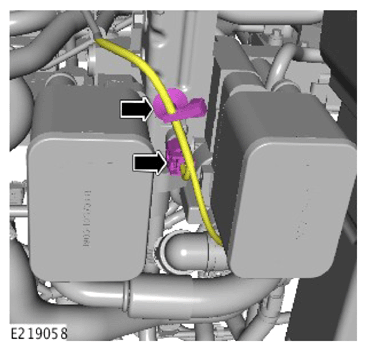

- Release the wiring harness from the clip.
- Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

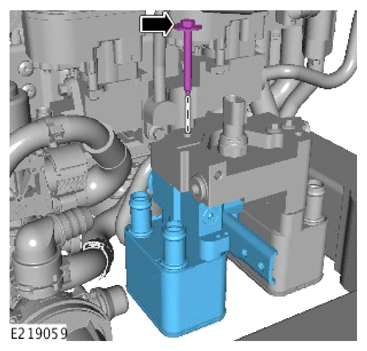

Remove the electric vehicle battery cooler assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

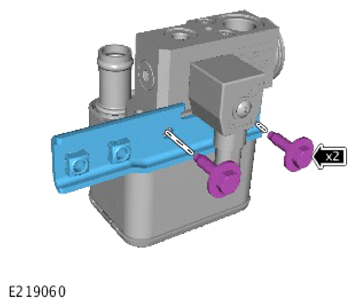

Remove the 2 retaining bolts and the bracket.
