Electric Drive Cooler (G2220039): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Recover the Air Conditioning (A/C) refrigerant.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the undershield.
Refer to: UNDERSHIELD .
Remove the front compartment left trim panel.
Refer to: FRONT COMPARTMENT LEFT TRIM PANEL .
Remove the front compartment right trim panel.
Refer to: FRONT COMPARTMENT RIGHT TRIM PANEL .
Remove the front stowage compartment.
Refer to: FRONT STOWAGE COMPARTMENT .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 lower cover retaining screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the lower cover.
Drain the electric drive cooling system.
Refer to: ELECTRIC DRIVE COOLING SYSTEM DRAIN AND FILL .
CAUTION: Be prepared to collect escaping fluid.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

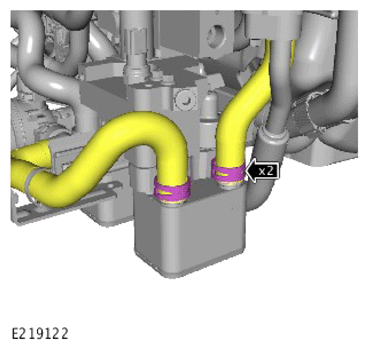

Release the 2 electric drive coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

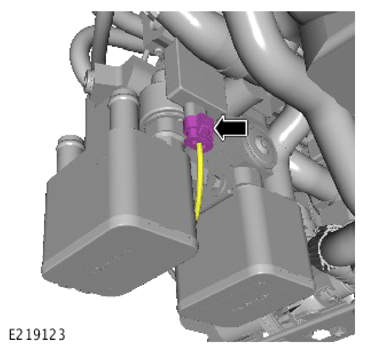

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

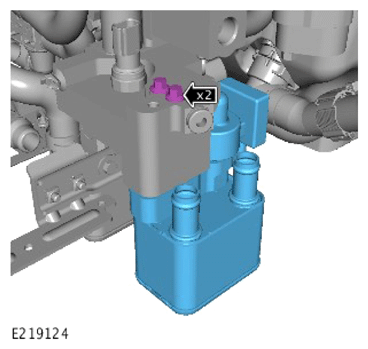

Remove the electric drive cooler.
