Electric Air Conditioning Compressor Low Pressure Pipe (G2226014): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: This procedure can only be completed after the vehicle has been powered down by an approved person.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

WARNING: Jaguar Land Rover Electric Vehicle Competent Person (EVCP) trained technicians only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

This procedure involves work on components associated with the High Voltage (HV) system. Only technicians qualified to EVCP level or higher are allowed to perform this procedure . It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle Safety Rules.

Refer to: ELECTRIC VEHICLE SAFETY RULES .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Recover the Air Conditioning (A/C) refrigerant.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
Drain the Electric vehicle battery coolant system.
Refer to: ELECTRIC DRIVE COOLING SYSTEM DRAIN AND FILL .
Remove the electric cooling fan.
Refer to: ELECTRIC COOLING FAN .
Before handling any High Voltage (HV) connectors the person(s) performing this procedure must refer to the HA electrical connector operation and inspection document.
Refer to: HIGH VOLTAGE ELECTRICAL CONNECTOR OPERATION AND INSPECTION .
Remove the front Electric Drive Unit (EDU).
Refer to: FRONT ELECTRIC DRIVE UNIT .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

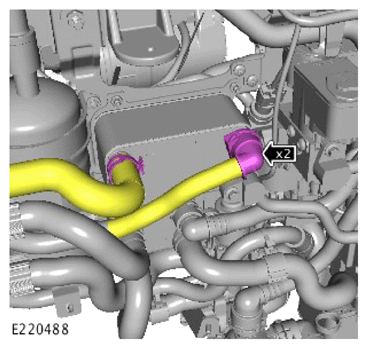

Release the 2 indirect condenser coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

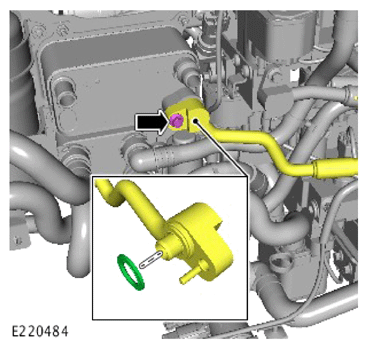

Release the A/C pipe and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

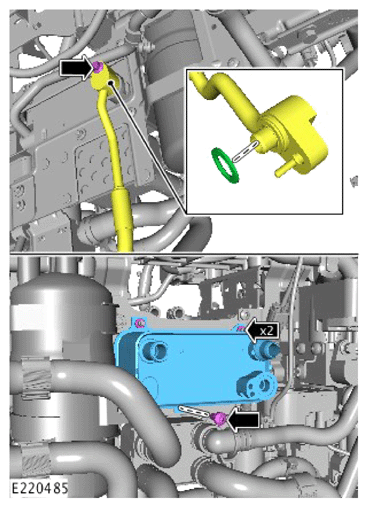

- Release the A/C pipe from the rear of the indirect condenser and discard the O-ring seal.
- Remove the indirect condenser.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

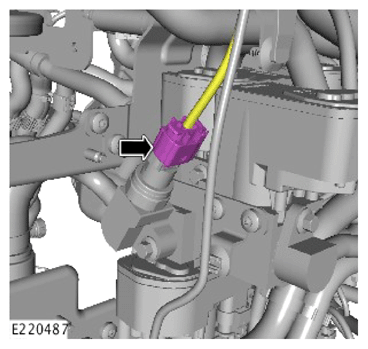

Disconnect the A/C high pressure temperature sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

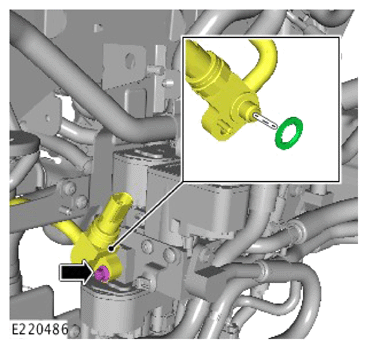

Release the low pressure pipe and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

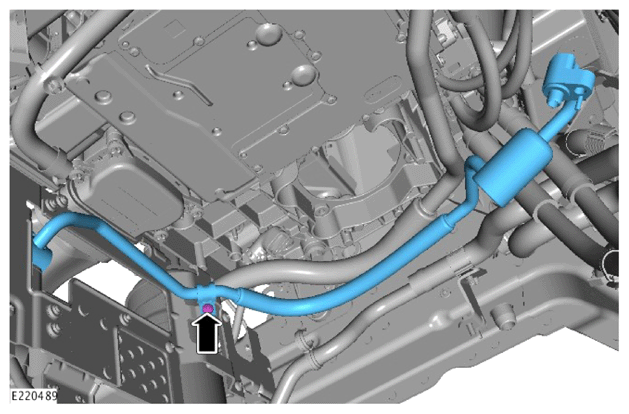

Remove the A/C compressor low pressure pipe.
