Driver Side Vent (G2217921): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. CAUTION: Do not use excessive force to remove the component.

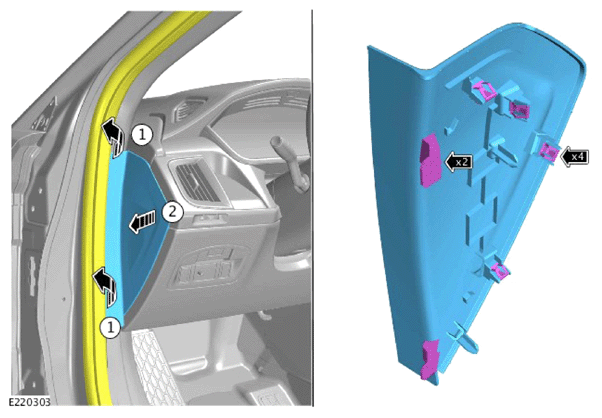

    G13922321Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the door aperture seal.
    • Release the 4 clips.
    • Release the plastic retainers.
    • Remove the trim panel.

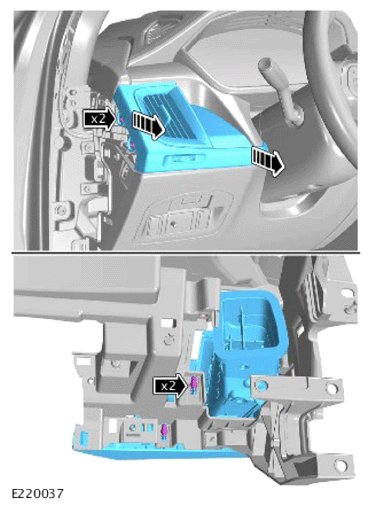

  2. G13922322Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 screws.
    • Release the 2 clips.
    • Remove the driver side face level vent assembly.
    NOTE: Only perform the following steps if a new component is to be installed.

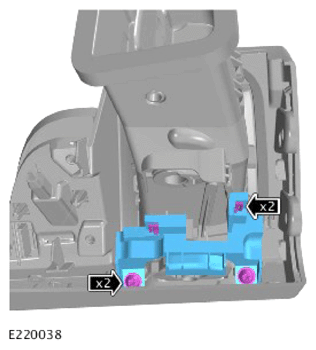

  3. G13922323Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 screws.
    • Carefully release the 2 clips.
    • Remove the retaining bracket.
  4. CAUTION: Take extra care not to damage the component.

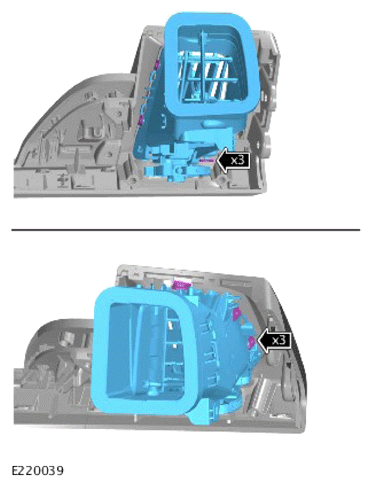

    G13922324Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Carefully release the 6 clips.
    • Remove the driver side face level vent.
