Demist Distribution Motor (G2225331): Removal
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Remove the front right feet distribution motor.
Refer to: FRONT RIGHT FEET DISTRIBUTION MOTOR .

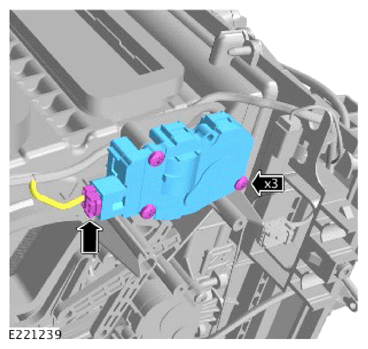

- Disconnect the electrical connector.
- Remove the 3 screws.
- Remove the distribution motor.
