Coolant Isolation Valve (G2225332): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Drain the climate control system and electric drive unit coolant system.
Refer to: CLIMATE CONTROL COOLING SYSTEM DRAIN AND FILL .
Remove the auxiliary battery.
Refer to: AUXILIARY BATTERY .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

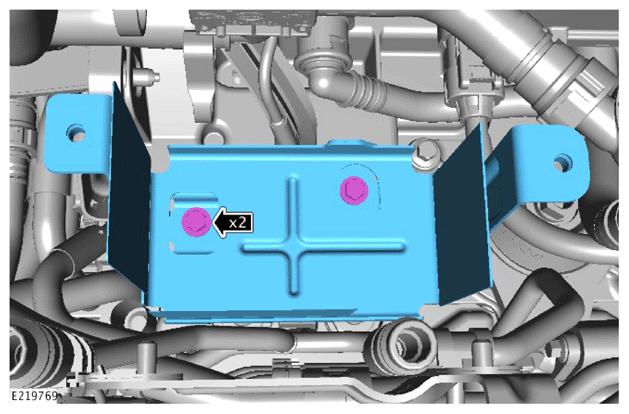

Remove the auxiliary battery tray.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

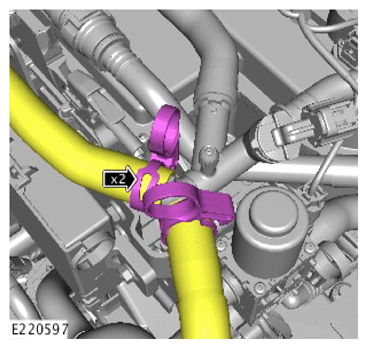

Release the 2 coolant hoses.
CAUTION: Take extra care not to damage the wiring harness.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

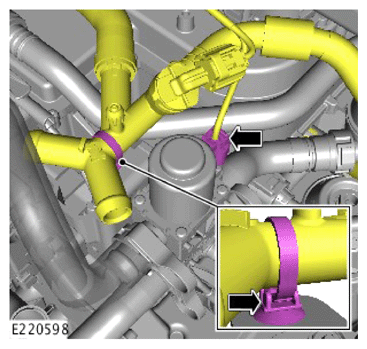

- Disconnect the wiring harness electrical connector.
- Release the coolant hose retaining clip.
- Position the coolant hoses to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

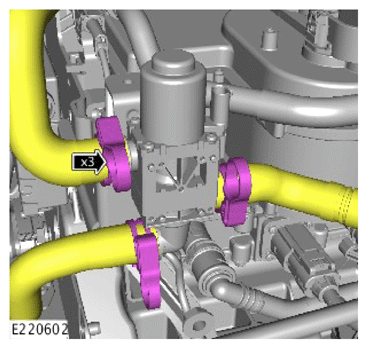

Release the 3 coolant hoses from the coolant isolation valve.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

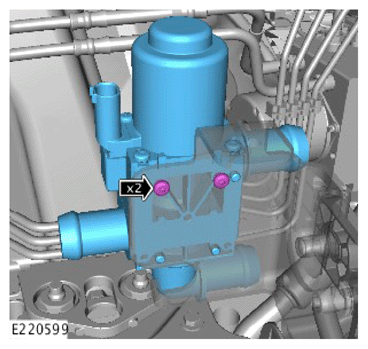

Remove the coolant isolation valve.
