Coolant Degas Separator (G2219250): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: This procedure can only be completed after the vehicle has been powered down by an approved person.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

WARNING: Jaguar Land Rover Electric Vehicle Competent Person (EVCP) trained technicians only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

This procedure involves work on components associated with the High Voltage (HV) system. Only technicians qualified to EVCP level or higher are allowed to perform this procedure . It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle Safety Rules.

Refer to: ELECTRIC VEHICLE SAFETY RULES .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
WARNING: Jaguar Land Rover Electric Vehicle Authorized Person (EVAP) trained technicians only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Power Down the High Voltage (HV) system. Only technicians qualified to EVAP level are allowed to perform this procedure . It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle Safety Rules.

Refer to: HIGH VOLTAGE SYSTEM POWER DOWN/UP - COMPLETE VEHICLE .
Using Jaguar Land Rover approved diagnostic equipment, drain the climate control system and Electric Drive Unit (EDU) cooling system.
Refer to: CLIMATE CONTROL COOLING SYSTEM DRAIN AND FILL .

General Equipment: Jaguar Land Rover approved diagnostic equipment
Remove the cowl panel.
Refer to: COWL PANEL .
CAUTION: Take extra care not to damage the wiring harness.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

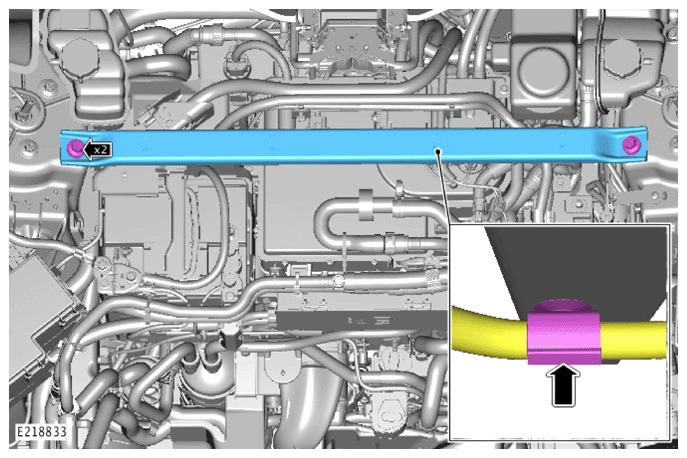

- Release the wiring harness retaining clip from the front compartment cross brace.
- Remove the front compartment cross brace.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

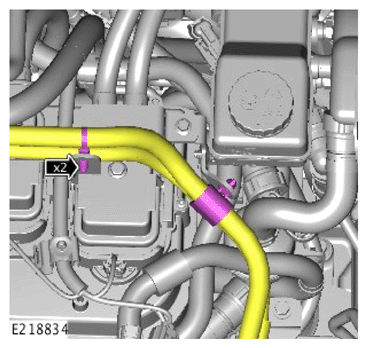

Release the wiring harness and position to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

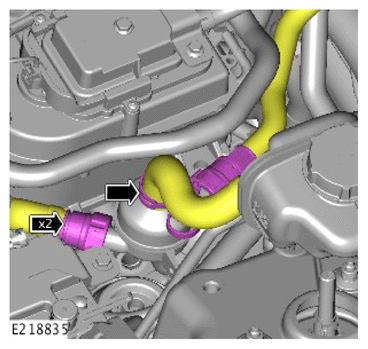

Disconnect the 3 coolant hoses and position to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

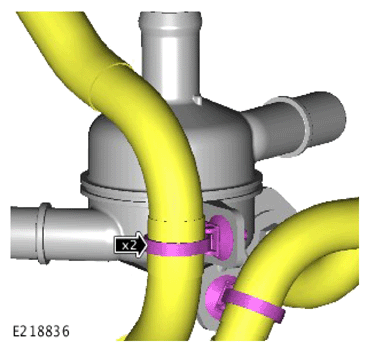

Release the 2 coolant hose retaining clips from the coolant degas separator assembly and position to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

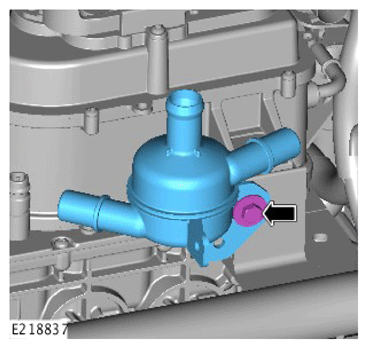

Remove the coolant degas separator.
