Condenser (G2218886): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Be prepared to collect escaping coolant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Remove the cooling module.
Refer to: COOLING MODULE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

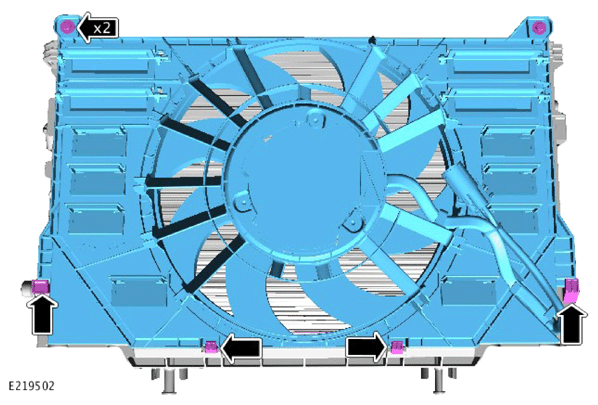

Remove the electric cooling fan.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

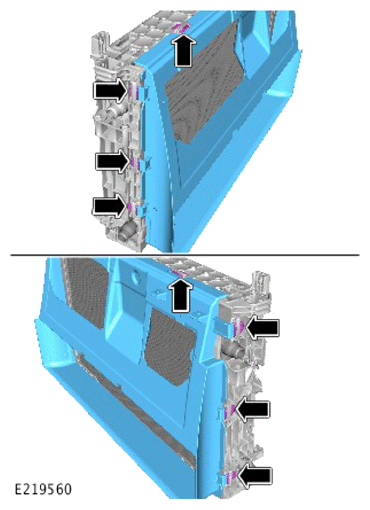

Remove the air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

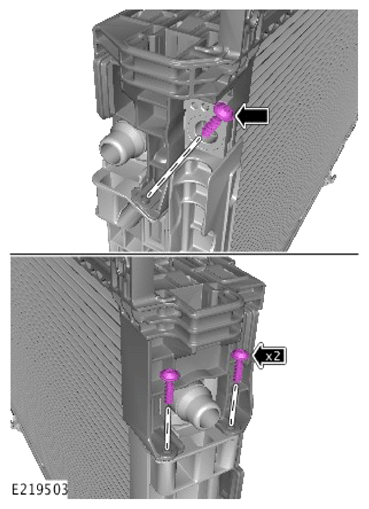

Remove the 3 retaining screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

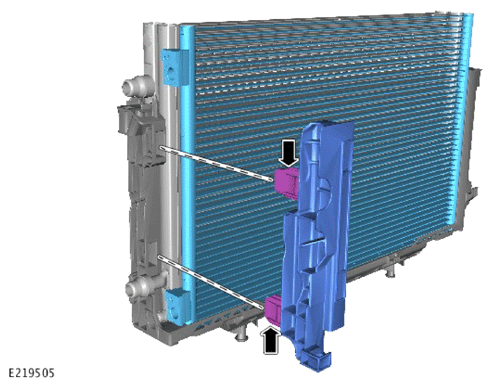

Remove the radiator retaining bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

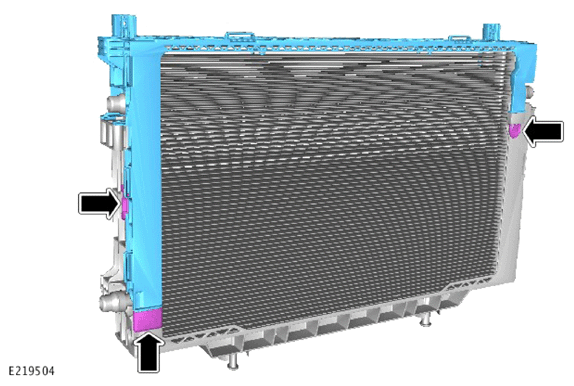

- Remove the Air Conditioning (A/C) condenser retaining bracket.
- Remove the A/C condenser.
