Climate Control Coolant Pump (G2224022): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the front right wheel and tire.
Refer to: WHEEL AND TIRE .
Drain the climate control system and electric drive unit coolant system.
Refer to: CLIMATE CONTROL COOLING SYSTEM DRAIN AND FILL .
Remove the front compartment right side trim panel.
Refer to: FRONT COMPARTMENT RIGHT TRIM PANEL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

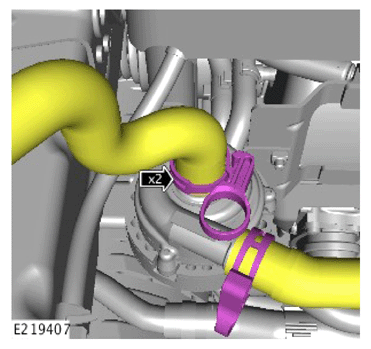

Release the 2 coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

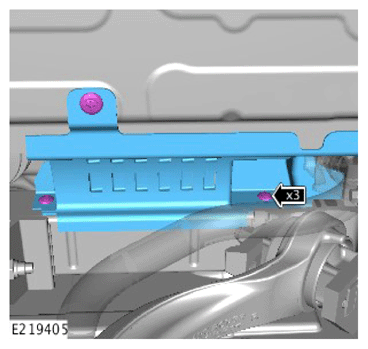

Remove the right side air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

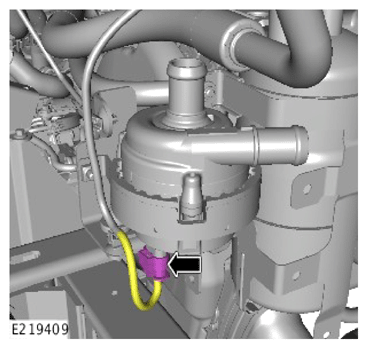

Disconnect the electrical connector from the climate control system coolant pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

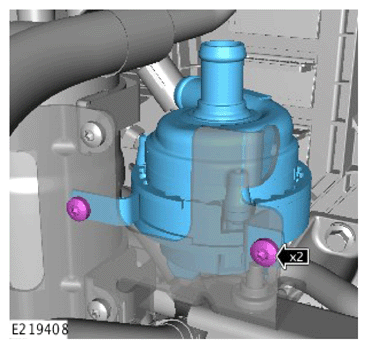

Remove the climate control system coolant pump.
