Center Vent (G2217920): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the touchscreen.
Refer to: TOUCHSCREEN .
NOTE: Make sure that no excessive force is used.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

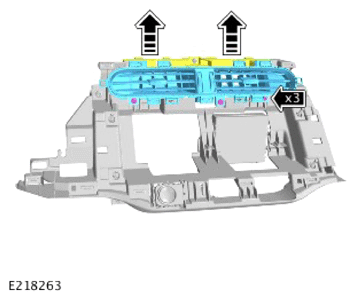

- Remove the 3 screws.
- Carefully lift the upper section of the center stack to remove the center vent.
