Blower (G2225943): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains illustrations for left hand drive vehicles, right hand drive vehicles are similar.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the start up battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT .

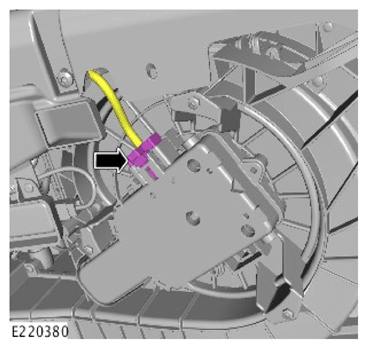

  2. G13922492Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the blower electrical connector

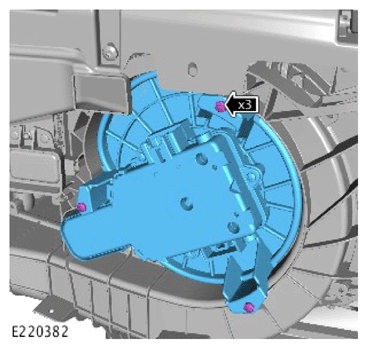

  3. G13922493Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 3 blower retaining screws and remove the blower assembly.

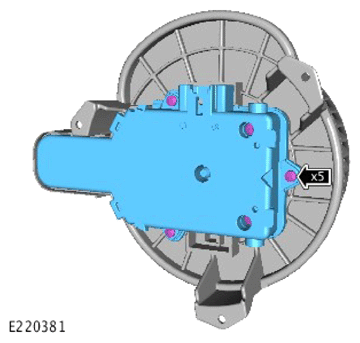

  4. G13922494Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the blower.
