Air Ionizer (G2218284): Removal
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
- Remove the instrument panel.
Refer to: INSTRUMENT PANEL .

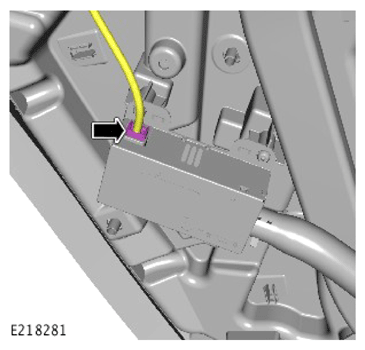

Disconnect the electrical connector.

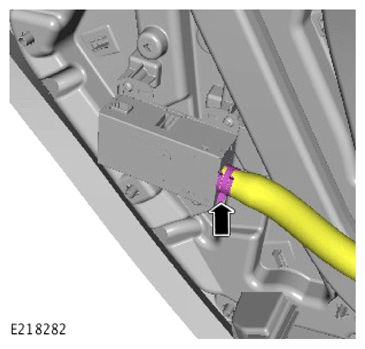

Release the breather pipe.

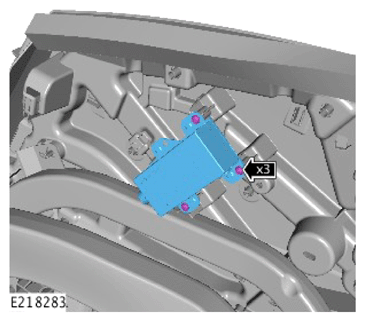

Remove the ionization unit.
