Air Conditioning Compressor Inlet Pipe (G2225280): Removal
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- This procedure can only be completed after the vehicle has been powered down by an approved person.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all components must be sealed.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
-
WARNING: Jaguar Land Rover Electric Vehicle Competent Person (EVCP) trained technicians only.
This procedure involves work on components associated with the High Voltage (HV) system. Only technicians qualified to EVCP level or higher are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle Safety Rules.
Refer to: ELECTRIC VEHICLE SAFETY RULES .
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
- Remove the front subframe.
Refer to: FRONT SUBFRAME .
- Remove the front Electric Drive Unit (EDU).
Refer to: FRONT ELECTRIC DRIVE UNIT .
- Remove the front stowage compartment.
Refer to: FRONT STOWAGE COMPARTMENT .

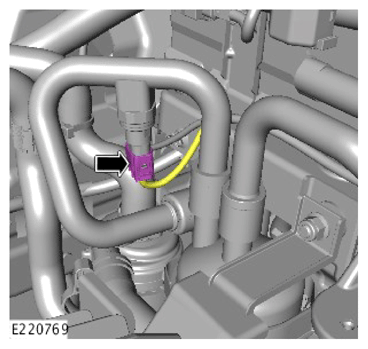

Release the wiring harness electrical connector from the A/C temperature and pressure sensor.
-

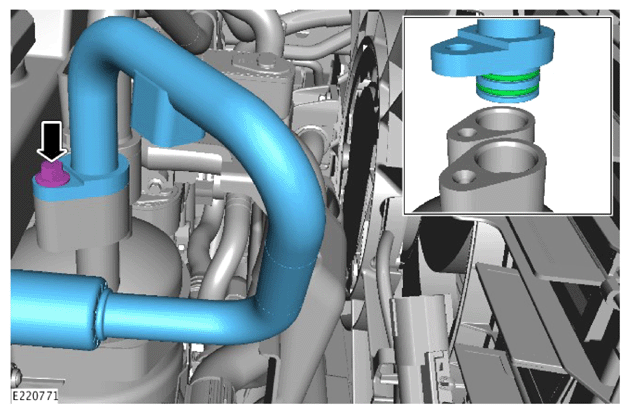

CAUTION: Discard the O-ring seals.
Remove the A/C compressor inlet pipe from the receiver dryer.
