Air Conditioning Compressor (G2218671): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: This procedure can only be completed after the vehicle has been powered down by an approved person.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

WARNING: Jaguar Land Rover Electric Vehicle Competent Person (EVCP) trained technicians only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

This procedure involves work on components associated with the High Voltage (HV) system. Only technicians qualified to EVCP level or higher are allowed to perform this procedure . It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle Safety Rules.

Refer to: ELECTRIC VEHICLE SAFETY RULES .
Evacuate the Air Conditioning (A/C) system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
WARNING: Jaguar Land Rover Electric Vehicle Authorized Person (EVAP) trained technicians only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Power Down the HV system. Only technicians qualified to EVAP level or higher are allowed to perform this procedure . It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle Safety Rules.

Refer to: HIGH VOLTAGE SYSTEM POWER DOWN/UP - AUXILIARY CIRCUIT .
Remove the front subframe.
Refer to: FRONT SUBFRAME .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

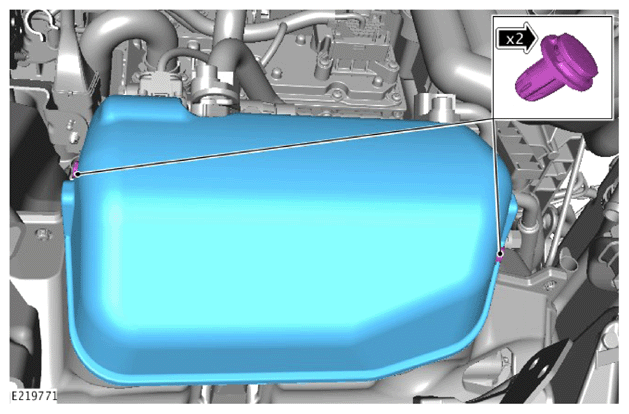

Remove the Noise, Vibration and Harshness (NVH) material.
Before handling any HA electrical connectors the person(s) completing this procedure must refer to the 'High Voltage Electrical Connector Operation and Inspection' document.
Refer to: HIGH VOLTAGE ELECTRICAL CONNECTOR OPERATION AND INSPECTION .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

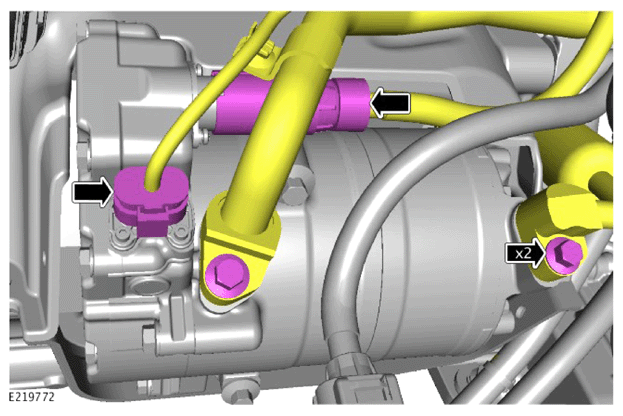

- Release the 2 pipes from the A/C compressor.
- Release the A/C compressor HA electrical connector.
- Release the A/C compressor wiring harness electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

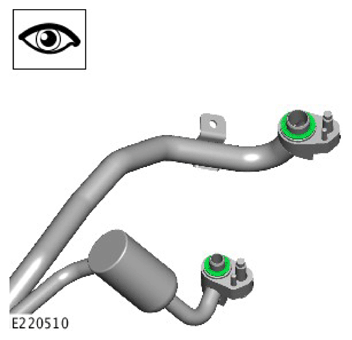

Remove and discard the A/C pipe seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

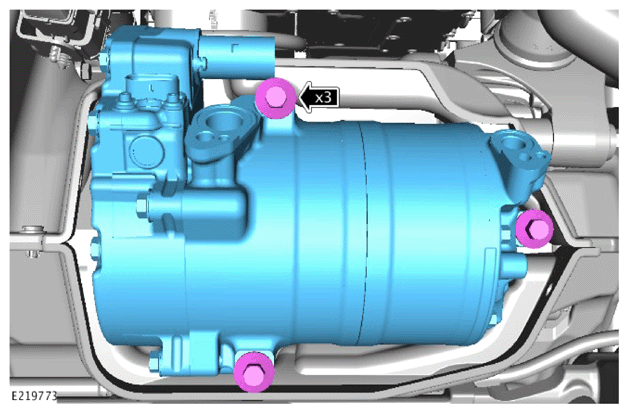

Remove the A/C compressor.
