Accumulator (G2224393): Removal

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before disconnecting, removing or installing components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle (EV) Safety Rules.
Refer to: ELECTRIC VEHICLE SAFETY RULES .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Recover the Air Conditioning (A/C) refrigerant.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
Remove the front Electric Drive Unit (EDU).
Refer to: FRONT ELECTRIC DRIVE UNIT .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

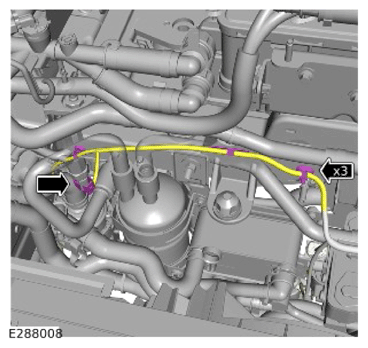

- Disconnect the electrical connector.
- Release the 3 wiring harness clips.
- Reposition the wiring harness away from the A/C accumulator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

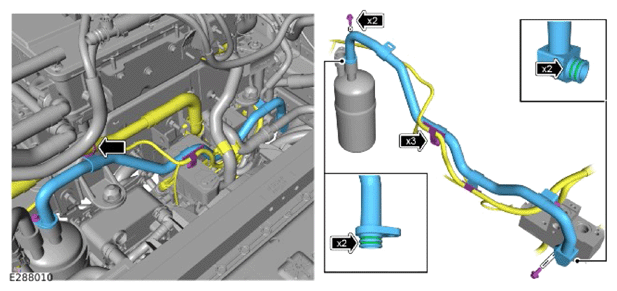

- Release the 4 wiring harness clips.
- Remove the 2 bolts.
- Remove the A/C pipe.
- Remove and discard the 4 O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

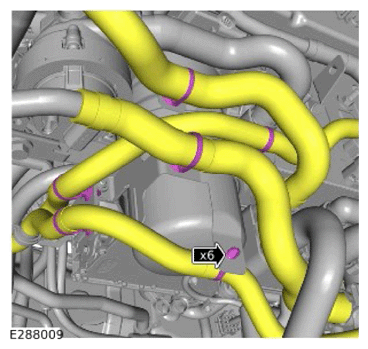

- Release the 6 clips.
- Reposition the 4 coolant hoses away from the bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

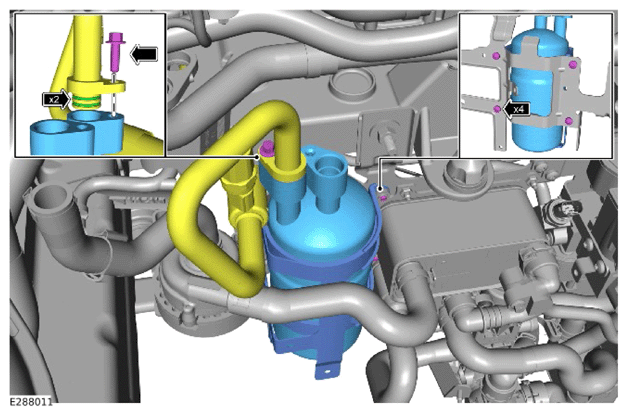

- Remove the A/C pipe bolt.
- Reposition the A/C pipe away from the A/C accumulator.
- Remove and discard the 2 O-ring seals.
- Remove the 4 bolts.
- Remove the bracket.
- Remove the A/C accumulator.
