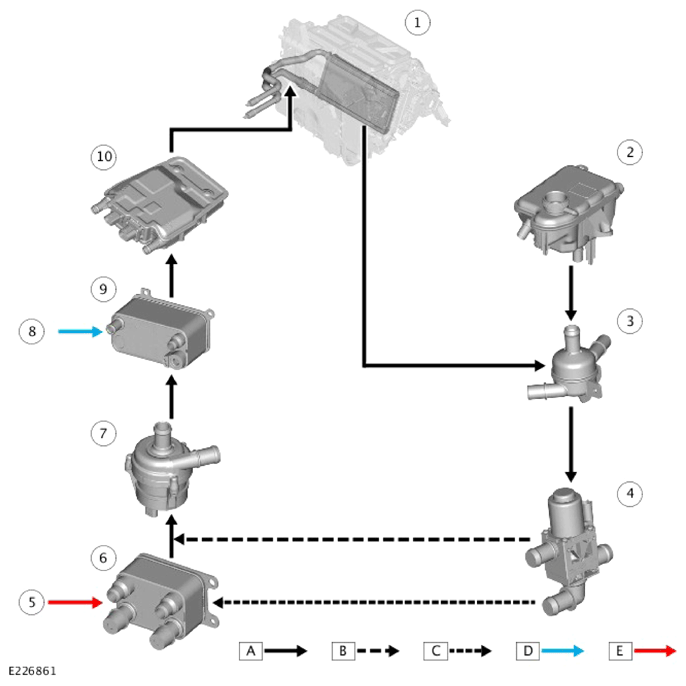

Schematic Diagram - Climate Control Coolant Flow
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
A = CLIMATE CONTROL COOLANT: B = CLIMATE CONTROL COOLANT (NORMAL FLOW): C = CLIMATE CONTROL COOLANT (ELECTRIC VEHICLE (EV) BATTERY HEATING FLOW ONLY): D = REFRIGERANT: E = ELECTRIC VEHICLE (EV) BATTERY COOLANT .
| ITEM | DESCRIPTION |
|---|---|
| 1 | Heater core in the climate control assembly |
| 2 | Electric drive expansion tank |
| 3 | Degas swirlpot |
| 4 | Climate control changeover valve |
| 5 | Electric Vehicle (EV) battery coolant connection |
| 6 | Climate control heat exchanger |
| 7 | Climate control coolant pump |
| 8 | Air Conditioning (A/C) system connection |
| 9 | Climate control indirect condenser |
| 10 | High Voltage (HV) interior heater |
