Climate Control Assembly
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

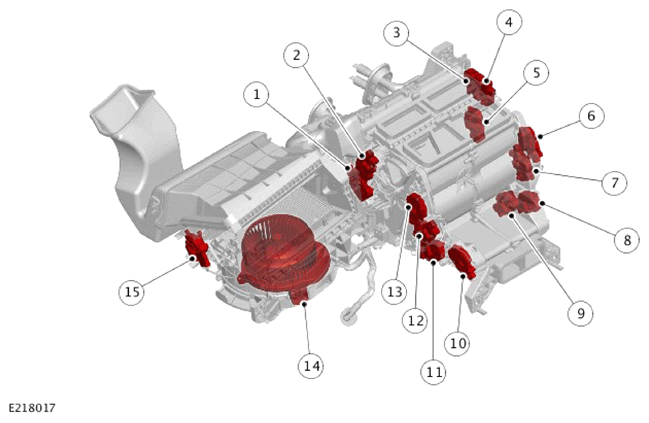

| ITEM | DESCRIPTION |
|---|---|
| 1 | Front left demist distribution motor |
| 2 | Front left foot distribution motor |
| 3 | Demist distribution motor |
| 4 | Front right foot distribution motor |
| 5 | Front right demist distribution motor |
| 6 | Front right face distribution motor |
| 7 | Rear right demist distribution motor |
| 8 | Rear right face distribution motor |
| 9 | Rear right foot distribution motor |
| 10 | Rear left face distribution motor |
| 11 | Rear left foot distribution motor |
| 12 | Rear left demist distribution motor |
| 13 | Front right face distribution motor |
| 14 | Blower |
| 15 | Recirculation motor |
The climate control assembly controls the temperature of the air supplied to the air distribution ducts, as directed by the HVAC Control Module.
The climate control assembly comprises the following components:
- Blower
- Heater core
- Air filter
- For additional information, refer to: AIR DISTRIBUTION AND FILTERING .
- Air Conditioning (A/C) evaporator
- For additional information, refer to: AIR CONDITIONING .
- Recirculation, distribution and temperature blend motors
- For additional information, refer to: CONTROL COMPONENTS .
- High Voltage (HV) interior heater.
