Component Location - 1 Of 1
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not do any work on the electric High Voltage (HV) system until the HV system on the vehicle is powered down.

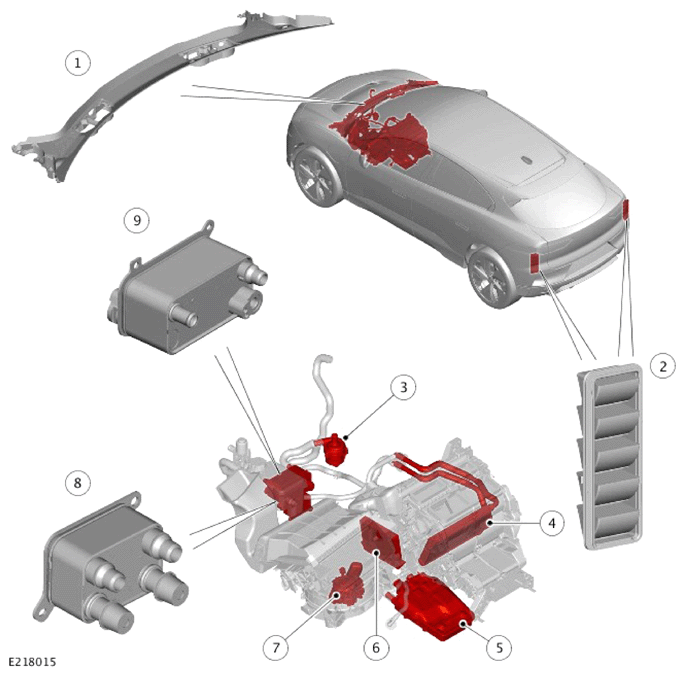

| ITEM | DESCRIPTION |
|---|---|
| 1 | Air intake panel |
| 2 | Ventilation outlet (2 off) |
| 3 | Climate control coolant pump |
| 4 | Heater core |
| 5 | High Voltage (HV) interior heater |
| 6 | HVAC Control Module |
| 7 | Blower control module |
| 8 | Climate control heat exchanger |
| 9 | Climate control indirect condenser |
