Humidity Sensor
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

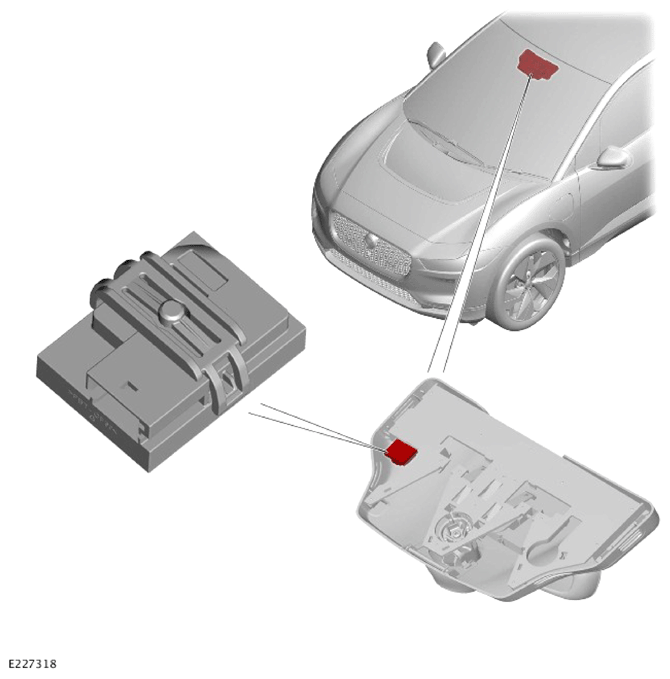

The humidity sensor is installed on the inside of the windshield close to the rear view mirror. The humidity sensor is located against the windshield by a bracket attached to the windshield. The humidity sensor is concealed under a cover. The humidity sensor comprises 3 individual elements:
- A capacitive humidity sensor.
- A Negative Temperature Coefficient (NTC) resistor, air temperature sensor.
- An infrared windshield glass temperature sensor.
The data from the 3 individual elements of the humidity sensor are transmitted on the Local Interconnect Network (LIN) to the HVAC control module.
The humidity sensor is hardwired to the HVAC by a 3 pin connector to the wiring harness. The 3 pin connector has the following electrical connections:
- Power supply from the HVAC.
- Local Interconnect Network (LIN) to the HVAC.
- Ground connection through the HVAC.
