Duct Air Temperature Sensors
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

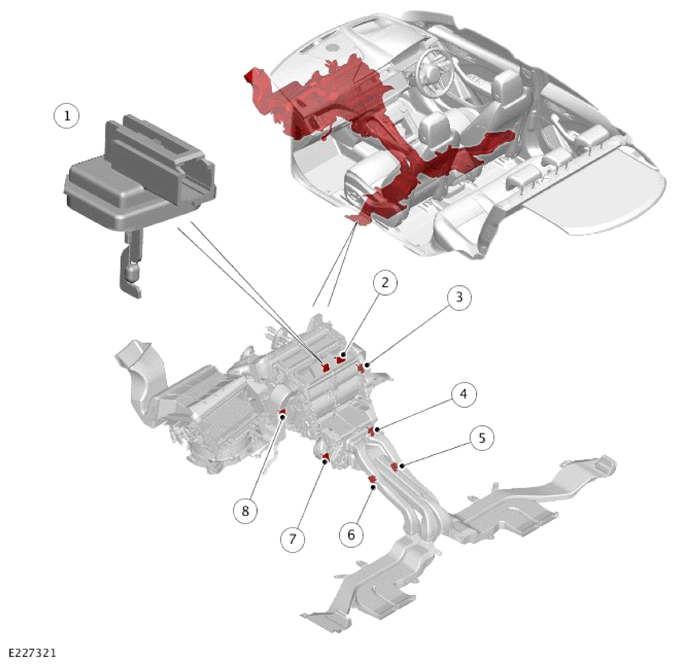

Right Hand Drive (RHD) vehicle is shown below, Left Hand Drive (LHD) vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Duct air temperature sensor - Front center left face vent duct |
| 2 | Duct air temperature sensor - Front center right face vent duct |
| 3 | Duct air temperature sensor - Front right footwell vent duct |
| 4 | Duct air temperature sensor - Rear right footwell vent duct |
| 5 | Duct air temperature sensor - Rear right face vent duct |
| 6 | Duct air temperature sensor - Rear left face vent duct |
| 7 | Duct air temperature sensor - Rear left footwell vent duct |
| 8 | Duct air temperature sensor - Front left footwell vent duct |
The duct air temperature sensors are located in the air distribution ducts from the climate control assembly. The duct air temperature sensors are installed in the following air distribution ducts:
- Front center left and right face vent ducts.
- Front left and right footwell vent ducts.
- Rear left and right face vent ducts.
- Rear left and right footwell vent ducts.
The duct air temperature sensors are the Negative Temperature Coefficient (NTC) resistor type. The duct air temperature sensors are hardwired to the HVAC control module by a 2 pin connector through the wiring harness. The 2 pin connector has the following electrical connections:
- A 5V supply from the HVAC.
- A ground connection to the HVAC.
